6FX8002-2EQ10-1AF0 Compatible Signal Cable for Siemens SINAMICS / SIMODRIVE Absolute Encoder (5m)
Compatible replacement for Siemens 6FX8002-2EQ10-1AF0 signal cable. 5m, MOTION-CONNECT 800PLUS specification, M23 + 25-pin D-Sub connectors, EnDat. Not a genuine Siemens part. 12-month warranty.
Compatible replacement signal cable for Siemens 6FX8002-2EQ10-1AF0 — high-quality MOTION-CONNECT 800PLUS specification cable for the feedback loop between a Siemens absolute encoder (EnDat, integrated in the motor) and a Siemens SINAMICS, SIMODRIVE 611 or SINUMERIK drive system.
Important: This is not a genuine Siemens part. It is a high-quality compatible replacement cable built to the MOTION-CONNECT 800PLUS specification. The Siemens original has been discontinued, making compatible replacements the only practical option for service and machine repair work.
Equivalent to: Siemens 6FX8002-2EQ10-1AF0 / 6FX80022EQ101AF0
Specifications:
- Length: 5 metres
- Outer diameter: 9.8 mm
- Conductor cross-section: 3x(2x0.14 mm²) C + 4x0.14 mm² + 2x0.5 mm² + 4x0.22 mm² C

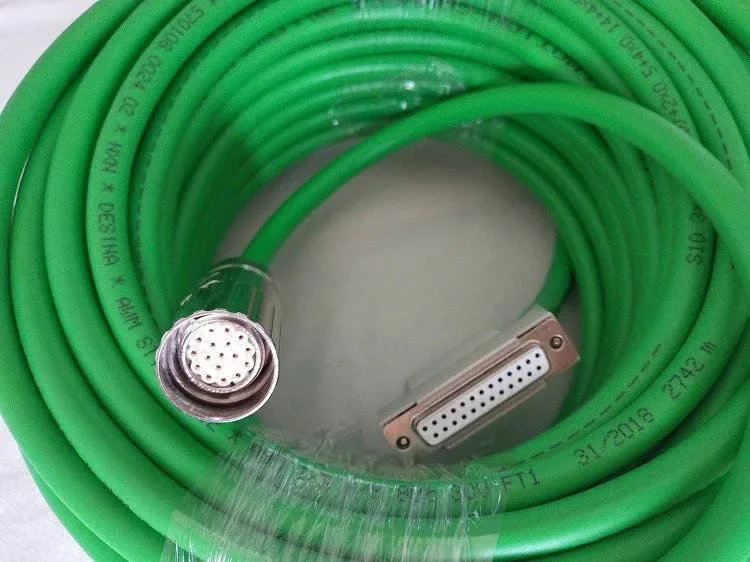

- Connectors: Straight M23 full-thread (encoder side) + 25-pin D-Sub (drive side)
- Protocol: EnDat (absolute encoder)
- Standard: MOTION-CONNECT 800PLUS, DESINA-compliant
- Certifications: UL, CSA, halogen-free, RoHS
- Oil-resistant, suitable for cable carriers (trailable) up to 50 m traversing distance
- Weight: 0.83 kg
Typical applications:
- Siemens SINAMICS S120 / S210 drive systems with absolute encoders
- Siemens SIMODRIVE 611 series with absolute encoders
- Siemens SIMOTICS S1FK7 / 1FT7 servo motors with integrated EnDat encoders
- SINUMERIK 840 controls with SMC20 / SME sensor modules
Delivery: 10 working days from order
Warranty: 12 months against manufacturing defect
