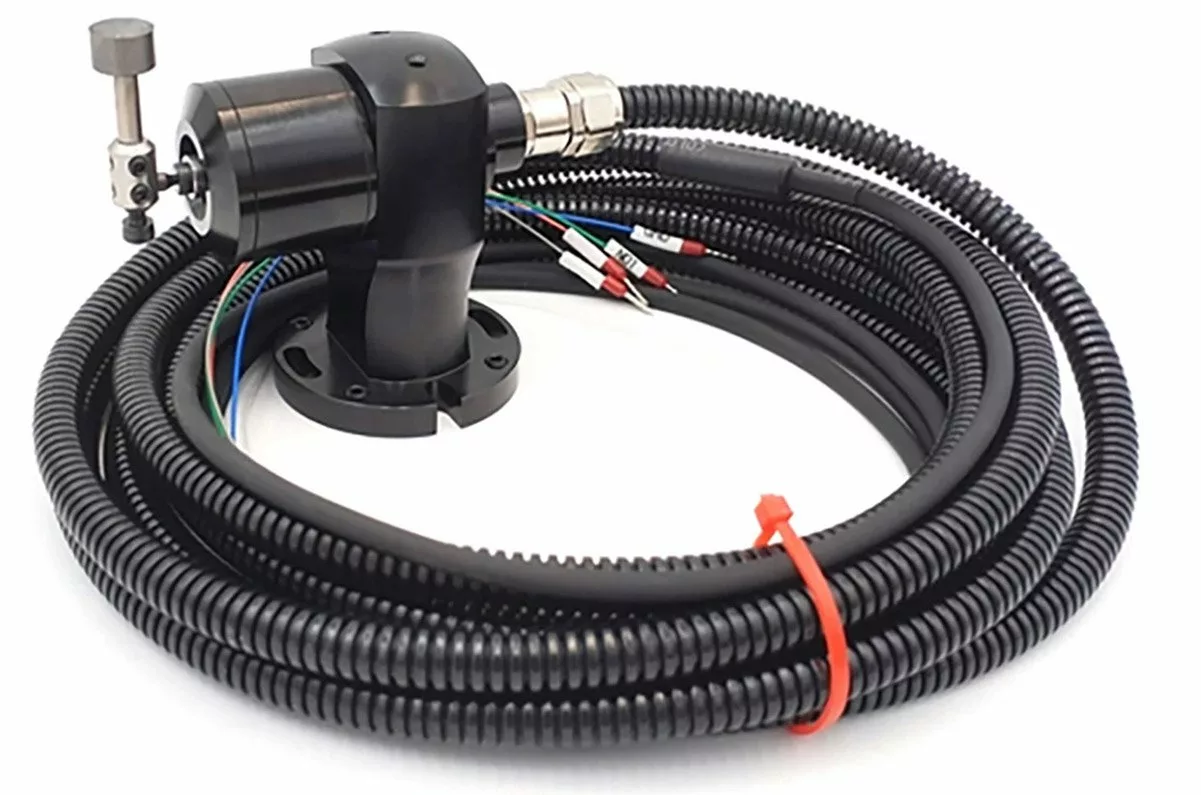

Tools Setting Probe to Replace Renishaw TS27R

This Tool setting probe is a cheaper direct replacement for the Renishaw TS27R. Comes complete with cable and conduit. Please note this is not a genuine Renishaw TS27R.

Touch diameter: 14-20mm
Output mode: hardwired transmission
Receiver/interface: MI8-4 or HSI
Recommended measuring needle: disk-shaped needle (tungsten carbide, 75 Brinell hardness) or square measuring needle (ceramic tip, 75 Brinell hardness)
Pre-travel: 0
Measuring direction: soil x, ± Y,+Z
Repetition accuracy: 0.01m (condition: operating speed 50-200mm/min)
Contact life: 3 million times
Protective structure: IP68
Contact force: 1.3N-2.4N depending on induction direction
Touch part material: tungsten steel/ceramic
Surface treatment method: grinding 4S mirror
Cable: standard 10m (cable diameter φ: 4.35mm 4-core shielded electrical building, each core φ 0.7 * 0.2mm installation: M2T bolt (not provided): optional sp1ro pin can realize accurate reinstallation

Operating temperature: +5 ℃ to 60 ℃
Storage temperature:  – 10 ℃ to+70 ℃
