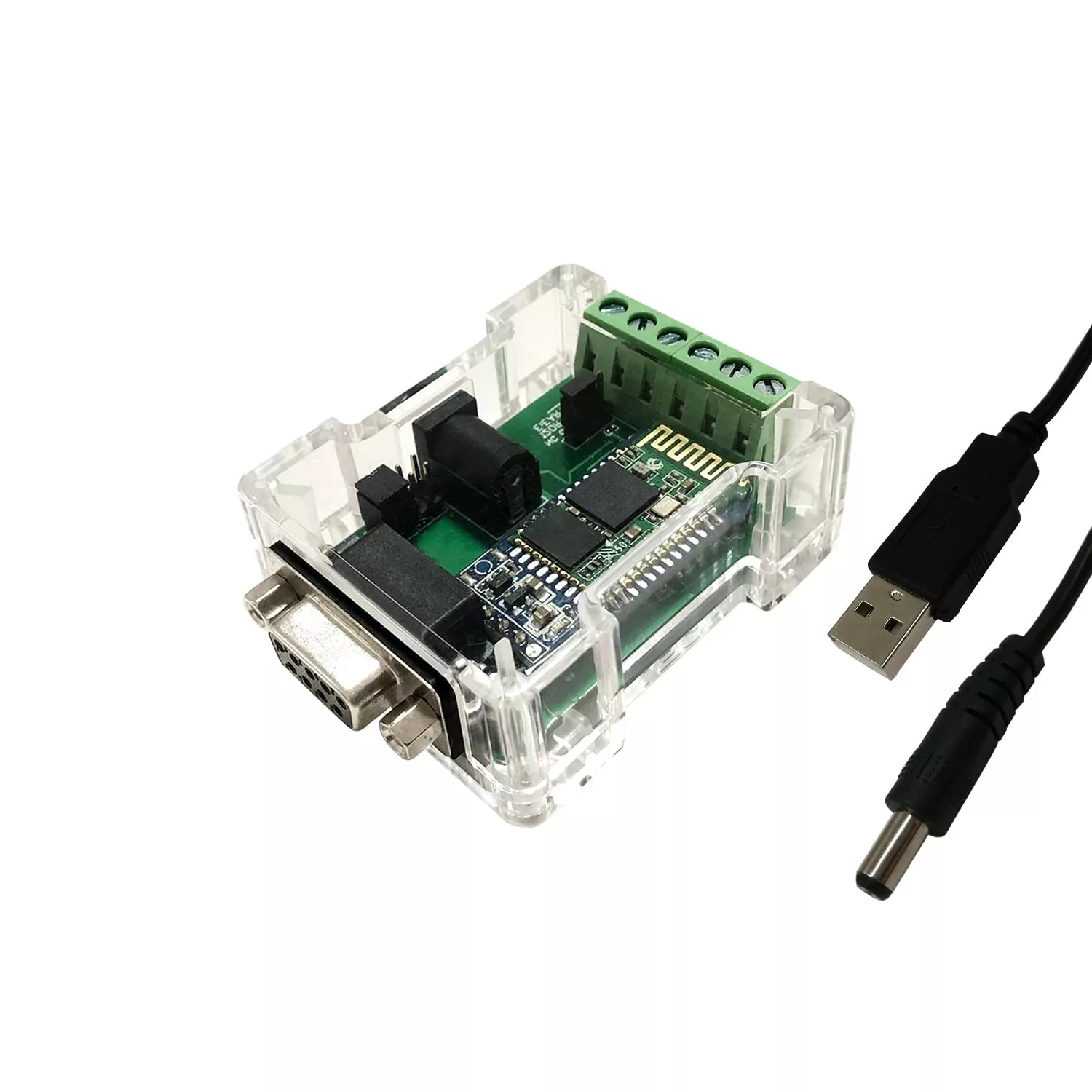

RS485 RS232 to Bluetooth 2.0 Adapter Support Android and Windows

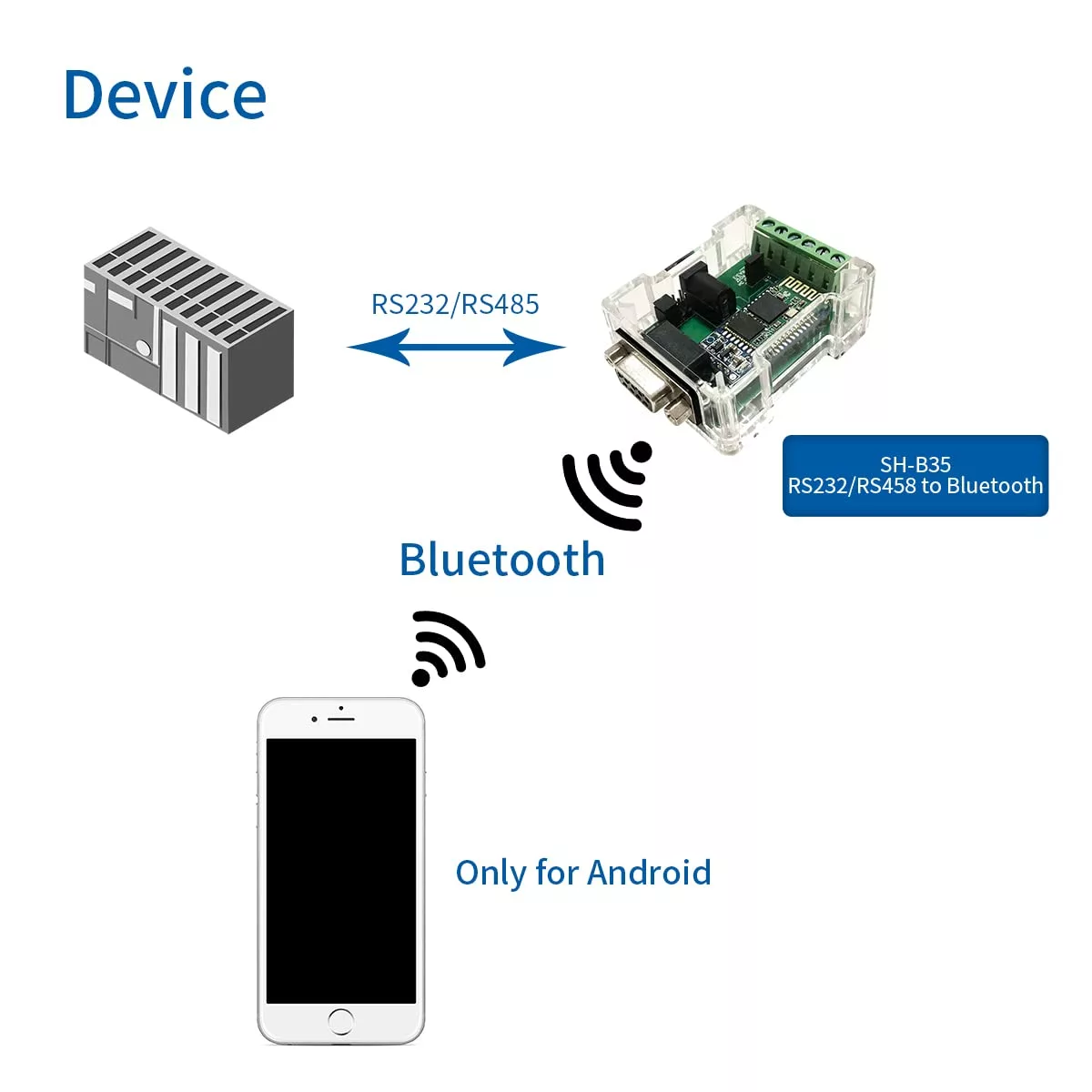

This RS485/RS232 to Bluetooth converter can connect with your PC or Android phone. Simply connect the device to any RS232 or RS485 compatible device and connect to via your PC or phone for data transmission. Can be used on CNC systems with RS232 or RS485 interfaces.

Specifications:

• Bluetooth: Bluetooth v2.0 + EDR Class 2 Radio
• Default Baud Setting : 9600 ,N,8,1
• RS485:Half-duplex transceiver
• Current draw:Max 90mA
• Bluetooth authentication PIN : 1234
• Distance: more than 20 meters
• RS485 Signals:A+,B-,GND
• RS232 Signals: DB9(RxD, TxD, GND)
• Power supply: 5V DC
• Operating temp: -20C to 85C
• Support Microsoft Windows Bluetooth COM port
• Configuration via Serial Port
• Typical Application - Microsoft Windows Bluetooth COM Port

This application requires install this Bluetooth adapter on Microsoft Windows, and Bluetooth connection to computer is required. A virtual COM port is created for this adapter after installation.

Package Content:

• 1 x RS485/RS232 to Bluetooth Converter
• 1 x USB Power cable
• 1 x User Manual
