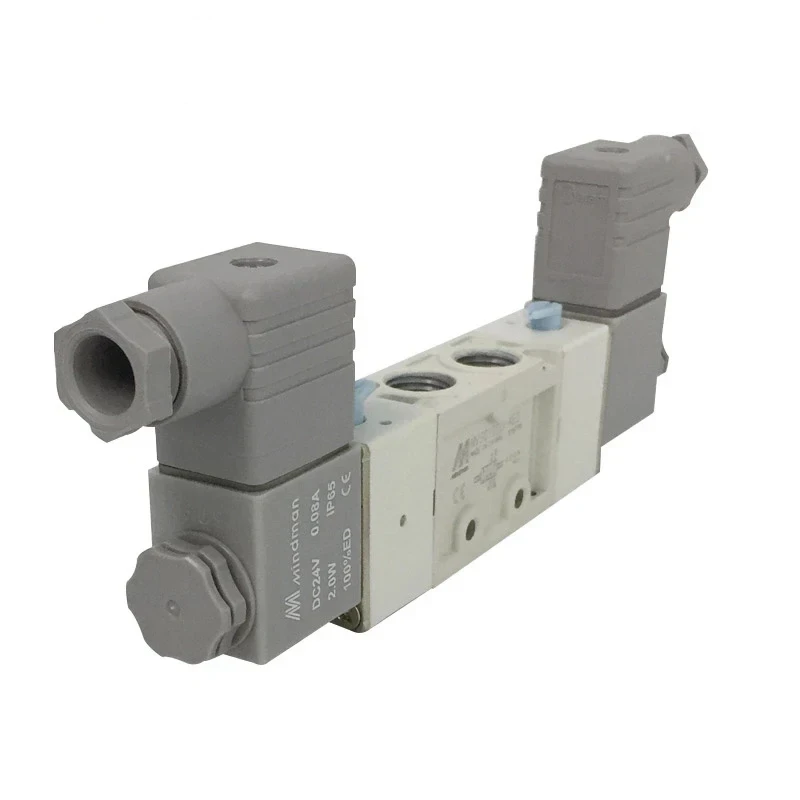

Mindman MVSC-220-4E2-DC24V Pneumatic Solenoid Valve
MINDMAN MVSC-220-4E2 DC24V Pneumatic Solenoid Valve — 2 Position, 5 Port, 1/4″ NPT, 0.2–0.8 MPa, Aluminium alloy body.
Mindman MVSC-220-4E2-DC24V Pneumatic Solenoid Valve
Solenoid valves are industrial equipment used for electromagnetic control, adjusting the direction, flow, speed and other parameters of media within industrial control systems. They cooperate with different circuits to achieve the expected control, ensuring control precision and flexibility.
The most common solenoid valve types include one-way valves, safety valves, directional control valves, and speed regulating valves.
Specifications
- Brand: MINDMAN
- Model: MVSC-220-4E2 DC24V
- Body Width: 22mm
- Media: Air
- Body Type: Body ported type
- Ports: 2 Position, 5 Ports
- Port Size: IN/OUT = 1/4" NPT, Exhaust = 1/8" NPT
- Pressure Range: 0.2–0.8 MPa
- Voltage: DC24V
- Material: Aluminium alloy
Construction
Solenoid valves are basic components used to control fluid, belonging to the actuator category — not limited to hydraulic or pneumatic systems. They control the direction of air flow, working alongside hydraulic cylinders in factory machinery.
Please note: The product image is for representational purposes only. It may not reflect the exact specification of the valve. Always refer to the specifications listed above for accurate product details.
