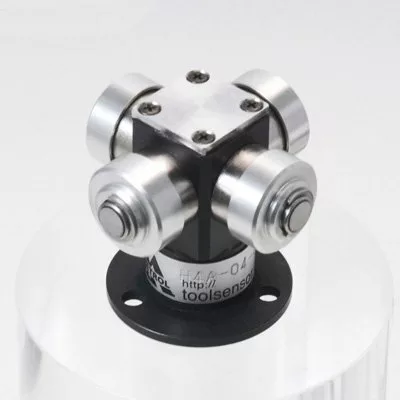

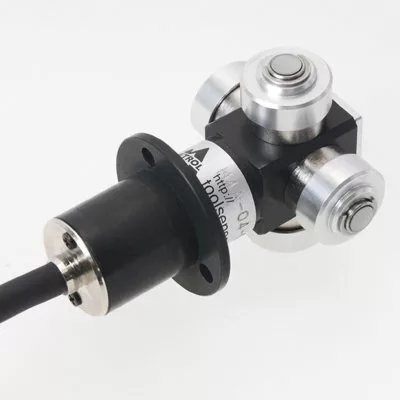

Metrol H4A-04-00A Tool Setter for Turning Centre
This is a replacement Metrol H4A-04-00A Tool setter probe commonly found on many CNC Turning Centres.
Estimated Delivery on 16, April 2026£642.90
Product Info
This is a replacement Metrol H4A-04-00A Tool setter probe commonly found on many CNC Turning Centres.
- H4A-04-00A improve tool life of CNC lathe by precision tool wear detection.
- Machining accuracy will be always maintained within tolerance.
- Reduction in rejection by tool breakage detection.

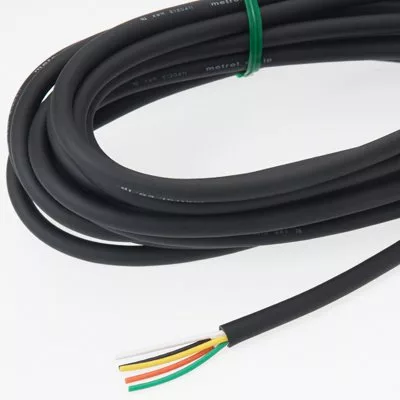

- 4 wire

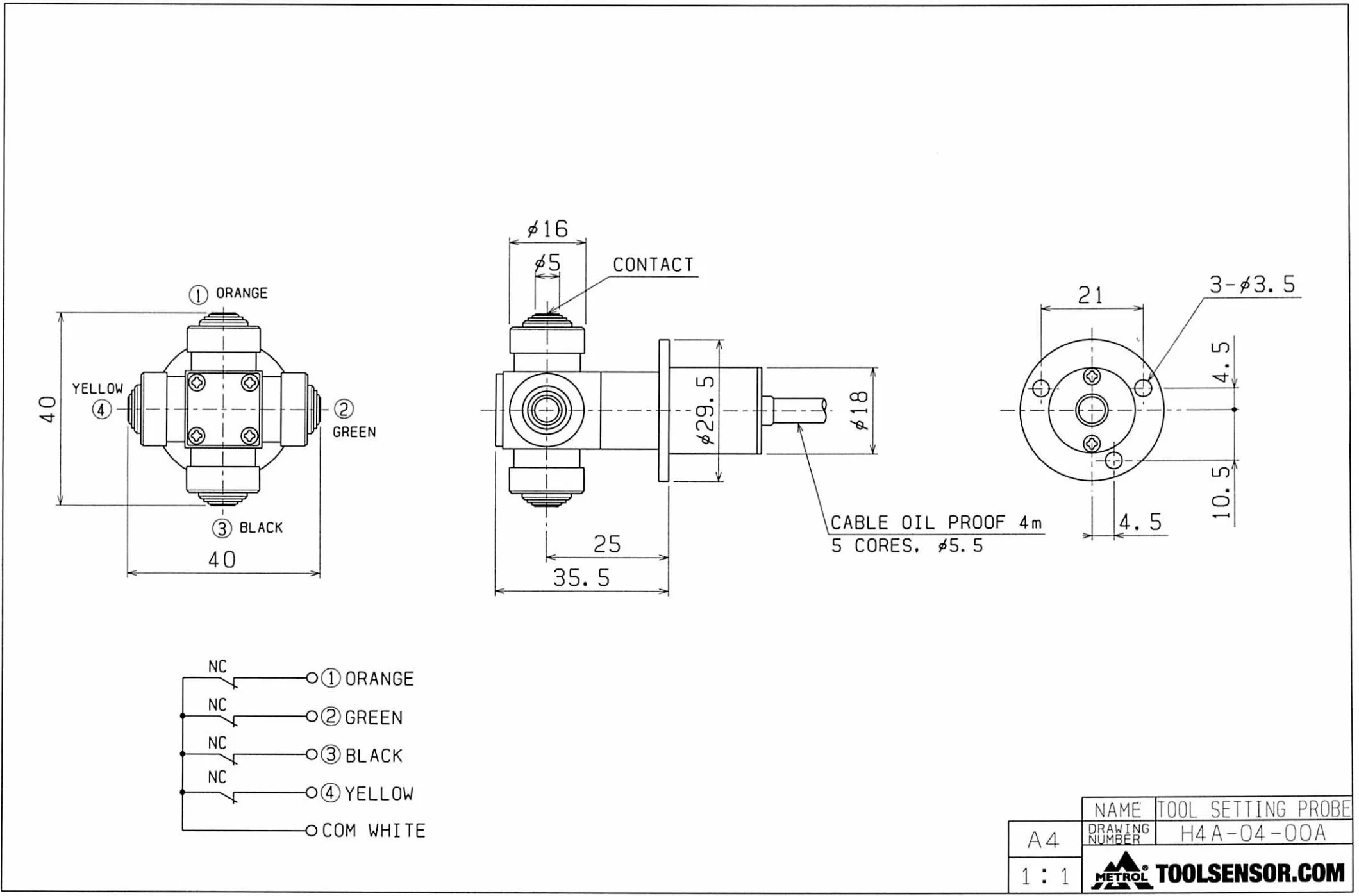

Specification
| Product number | H4A-04-00A |
|---|---|
| Repeatability | 0.001mm |
| Contact life time | 3,000,000 times |
| Stroke | 2mm |
| Contact force | 2N |
| Protective structure | IEC IP67 |
| Country of origin | JAPAN |
| Remarks | Standard Model |
Estimated Delivery on 16, April 2026Additional information
