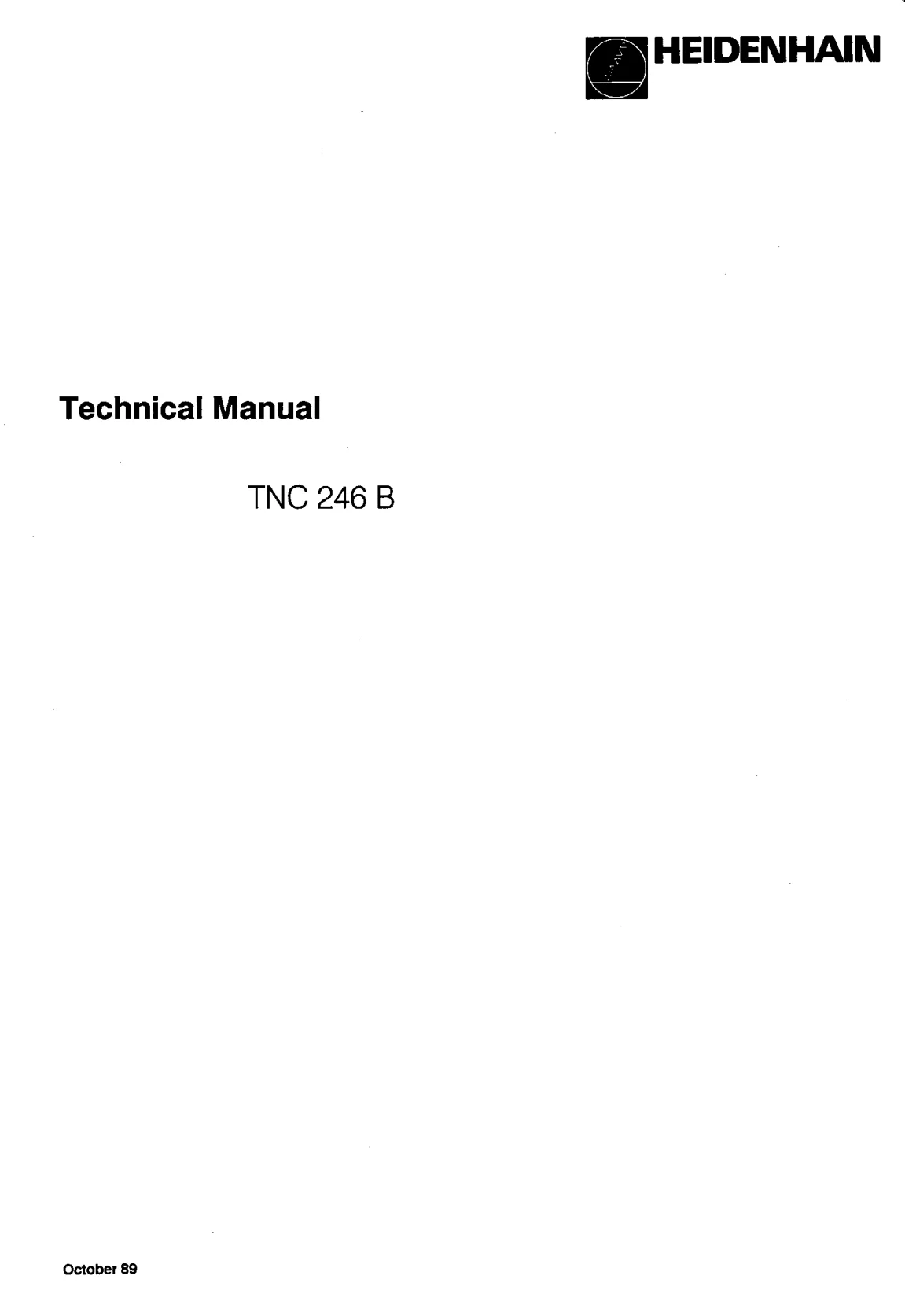

Heidenhain TNC 246 Technical Manual
Heidenhain TNC 246 Technical Manual — complete technical reference covering installation, configuration, parameter programming, PLC logic, drive optimisation, and fault diagnosis. Essential for service engineers and maintenance technicians working with TNC 246 equipment.
Complete technical reference manual for the Heidenhain TNC 246 CNC contouring control system. This comprehensive document covers every aspect of the TNC 246 — from initial installation and electrical integration through to full configuration, parameter programming, and routine maintenance.
The TNC 246 was widely specified on milling machines and machining centres throughout the 1980s and remains in service on older but still productive workshop equipment. It uses Heidenhain's established Klartext conversational programming language alongside full EIA/ISO G-code support.
Contents include:
- Complete installation and electrical connection procedures
- Full system configuration and parameter programming
- PLC logic configuration and I/O allocation
- Servo drive optimisation and tuning
- Fault diagnosis and alarm code reference
- Circuit diagrams and board layouts
- Routine maintenance procedures
This manual is the essential reference for service engineers, maintenance technicians, and retrofit specialists working with TNC 246 equipped machine tools.
