Yaskawa Servopack CPCR-IN DC Servo Controller Manual
£5.95+ VAT
No delivery charge · Instant download after purchaseQty
Instant download after payment
PDF, ZIP, and other digital formats
Download links sent via email
Access downloads in your account
Purchase orders accepted

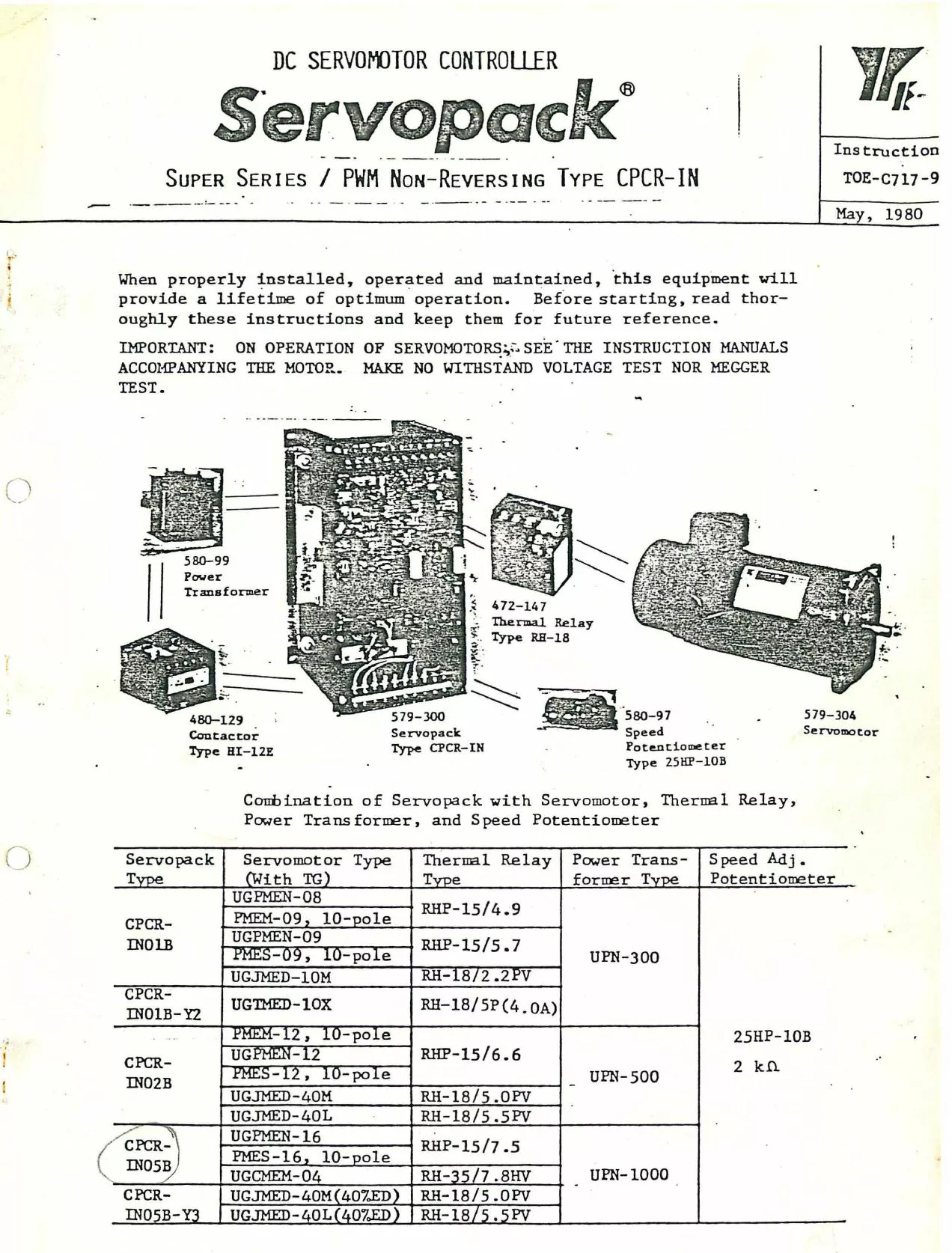

Yaskawa Servopack CPCR-IN DC servo controller manual — system overview, DC motor connections, speed/current regulator configuration, and diagnostic procedures for CPCR-IN servo drive systems.
Technical manual for Yaskawa Servopack CPCR-IN DC servo controller. The CPCR-IN (also known as Yaskawa CACR or similar designations) was a widely used DC servo drive system in CNC machine tools. This manual covers the complete technical specification and configuration of the CPCR-IN drive system.
Contents include:
- System overview and module descriptions
- DC motor connections and tachogenerator feedback
- Speed regulator (regulator) board configuration
- Current regulator and torque limiting circuits
- Troubleshooting and diagnostic procedures
- Circuit diagrams and timing waveforms
