VDI30 CNC Lathe Turret Alignment Test Bar 200mm - DIN 69880 VDI Tool Holder Inspection Bar

Precision-ground VDI30 alignment test bar for CNC lathe turrets. Fits the VDI30 (DIN 69880 / ISO 10889) tool holder pocket, 200 mm gauge length, serrated drive shank with locating flange and centre-drilled end. Supplied as the bar only – no calibration certificate.

VDI30 CNC lathe turret alignment test bar

The VDI30 is a precision-ground steel alignment arbor for checking the alignment and runout of a CNC lathe turret that uses the DIN 69880 (ISO 10889) VDI tool holder system. It drops into the turret pocket exactly as a turning tool would, so the bar presents the same axis the turret actually delivers to the workpiece. Sweep a dial indicator along the ground cylinder and any tilt or misalignment in the turret shows up as a changing reading along the length of the bar.

Specification

• Shank size: VDI30 - the 30 mm VDI tool holder interface
• Gauge length: 200 mm
• Gauge cylinder: Ø40 mm (the DIN 69880 gauge for the 200 mm bar)
• Interface standard: DIN 69880 / ISO 10889
• Material and finish: steel, precision-ground measuring cylinder
• Features: serrated VDI shank with drive teeth, locating flange, centre-drilled end
• Case and calibration certificate: not supplied with this bar

Choosing the right size

The three sizes in this range differ in the VDI shank that fits the turret pocket - a VDI30 bar will not go into a VDI40 pocket, and a VDI40 will not go into a VDI50. The size is stamped on the tool holder you already use: the number engraved on the shank is the VDI size, so check an existing tool before ordering. The supplier's own size code for this item is 30-200.

What is - and is not - supplied

This is the bar itself. The supplier publishes no runout or accuracy figure for it and does not include a calibration certificate or inspection report, so we are not going to quote one for you. If you need a certified reference with documented accuracy for acceptance testing or customer sign-off, buy a certificated bar instead. Trade-standard VDI test bars of this type are commonly quoted at around GBP 494 / 543 / 584 including VAT for the VDI30 / VDI40 / VDI50 (Kintek, each supplied with a calibration certificate and wooden case) and EUR 183 / 203 / 261 (Gedema, certificate available on request). Our price reflects an uncertificated bar, which is a different product from both of those.

Photographs

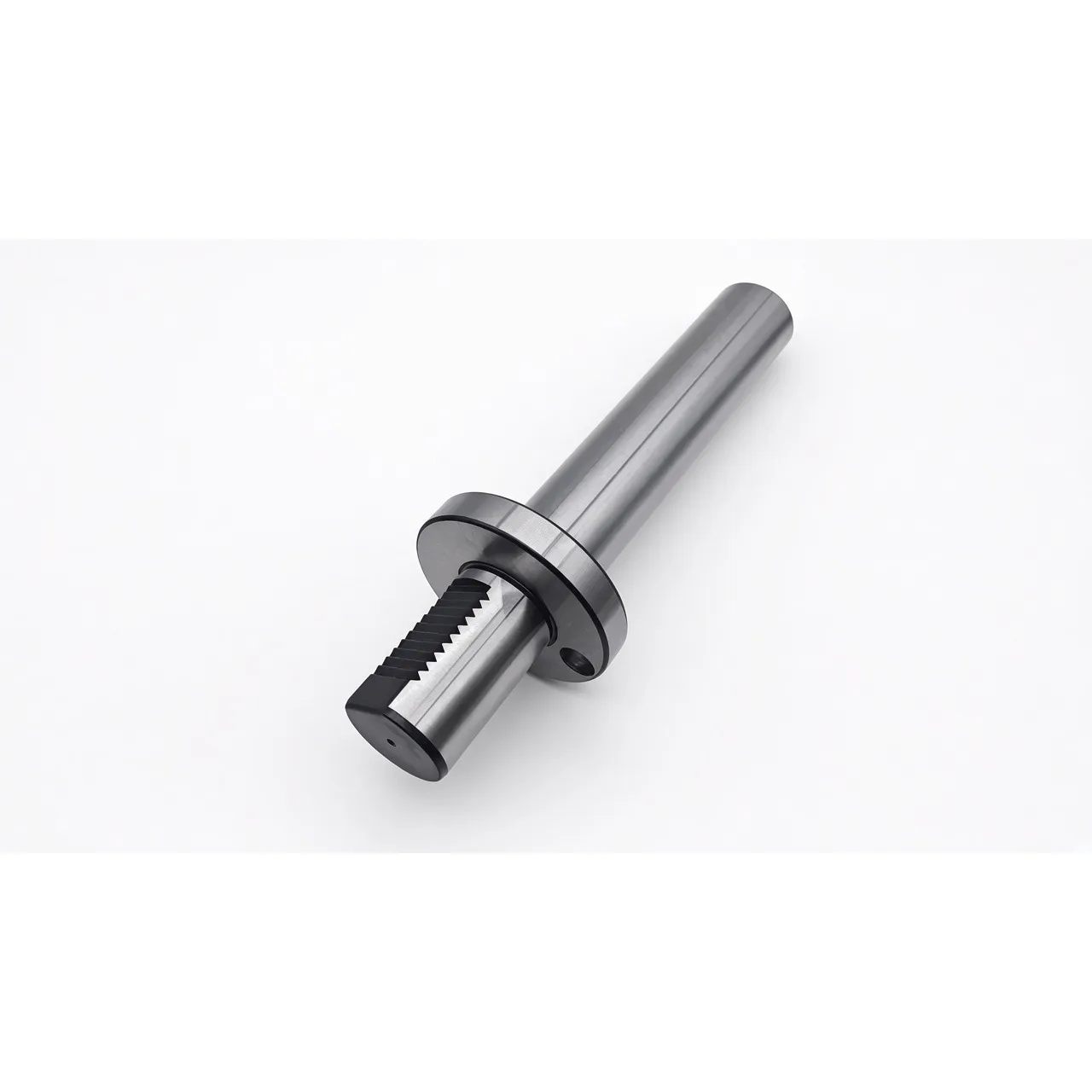

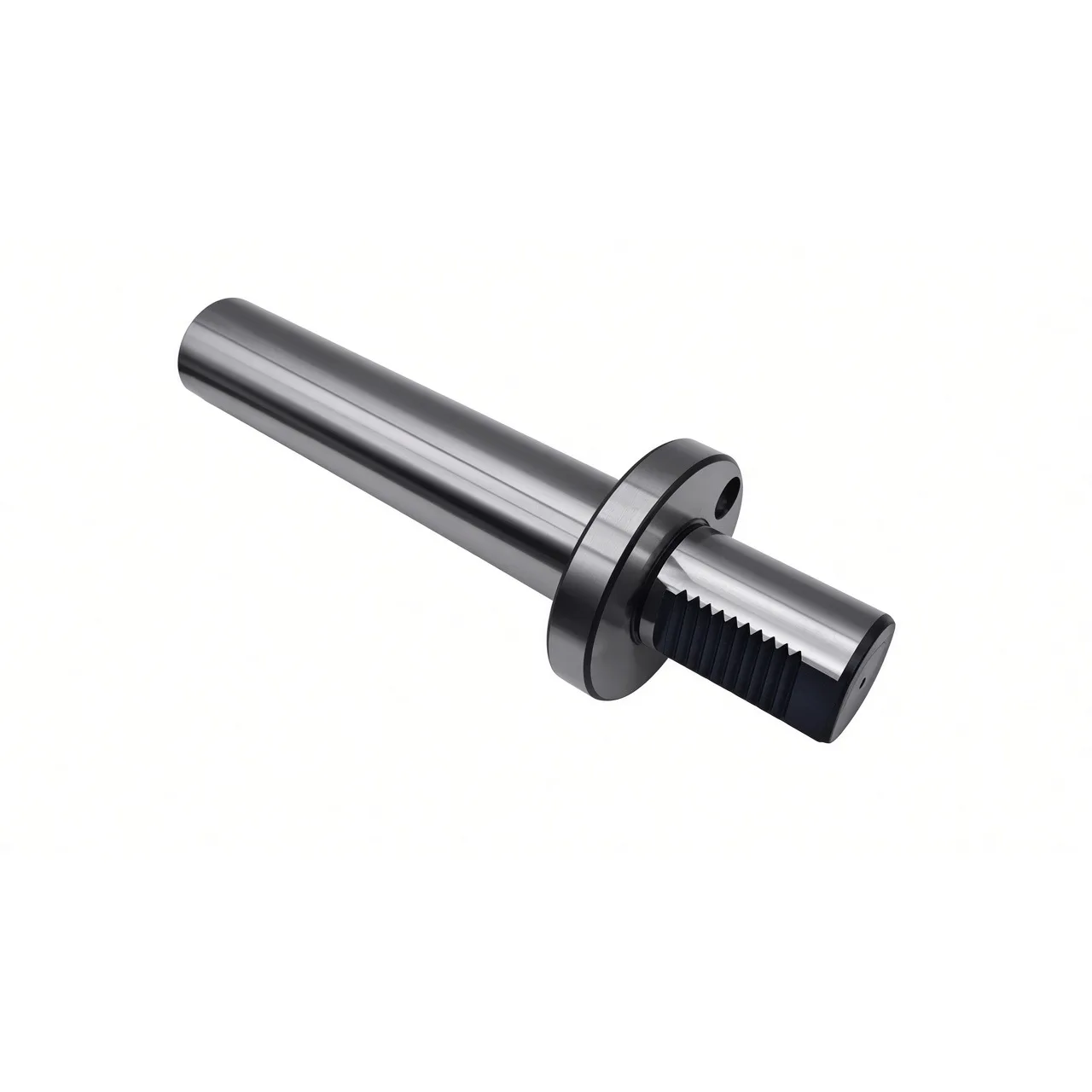

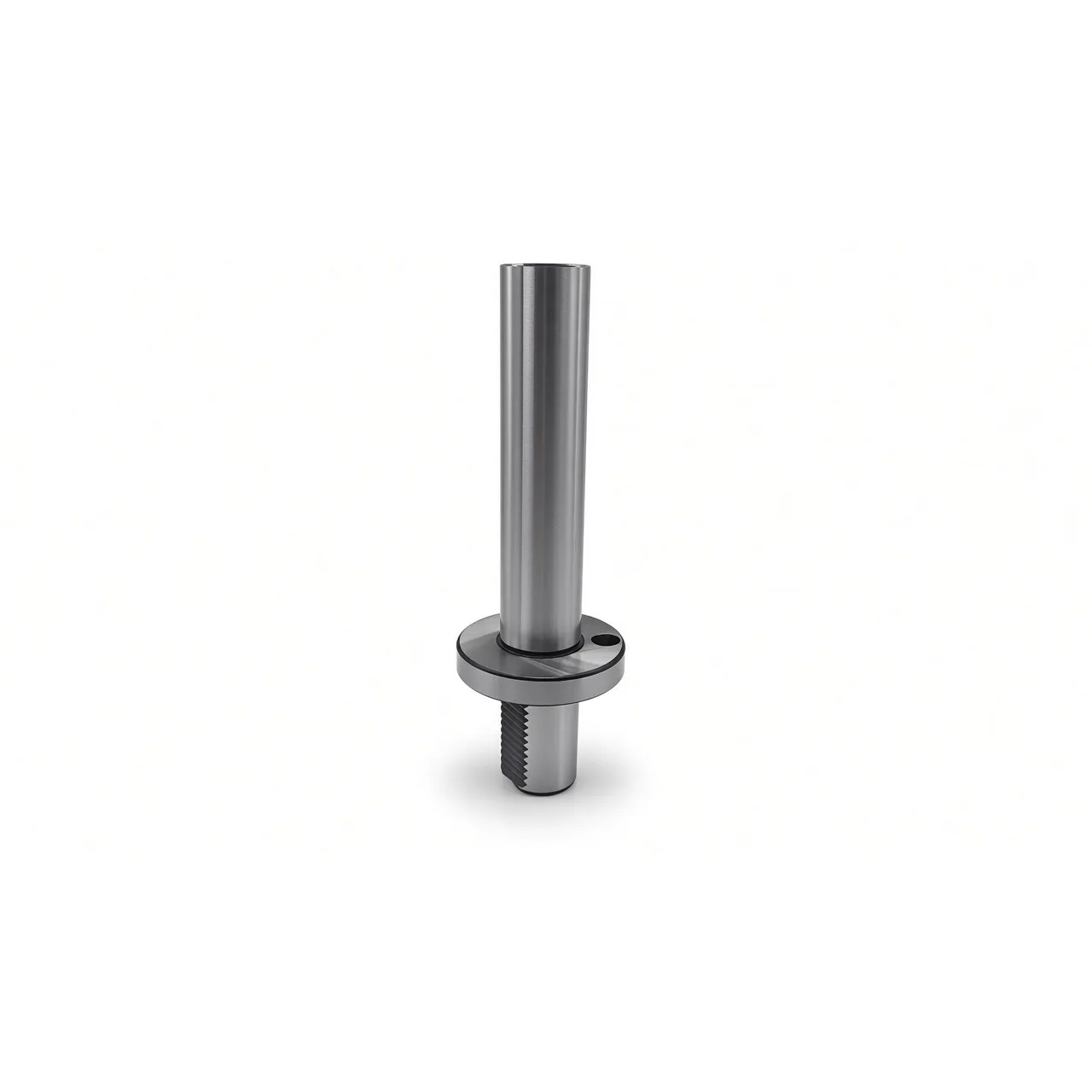

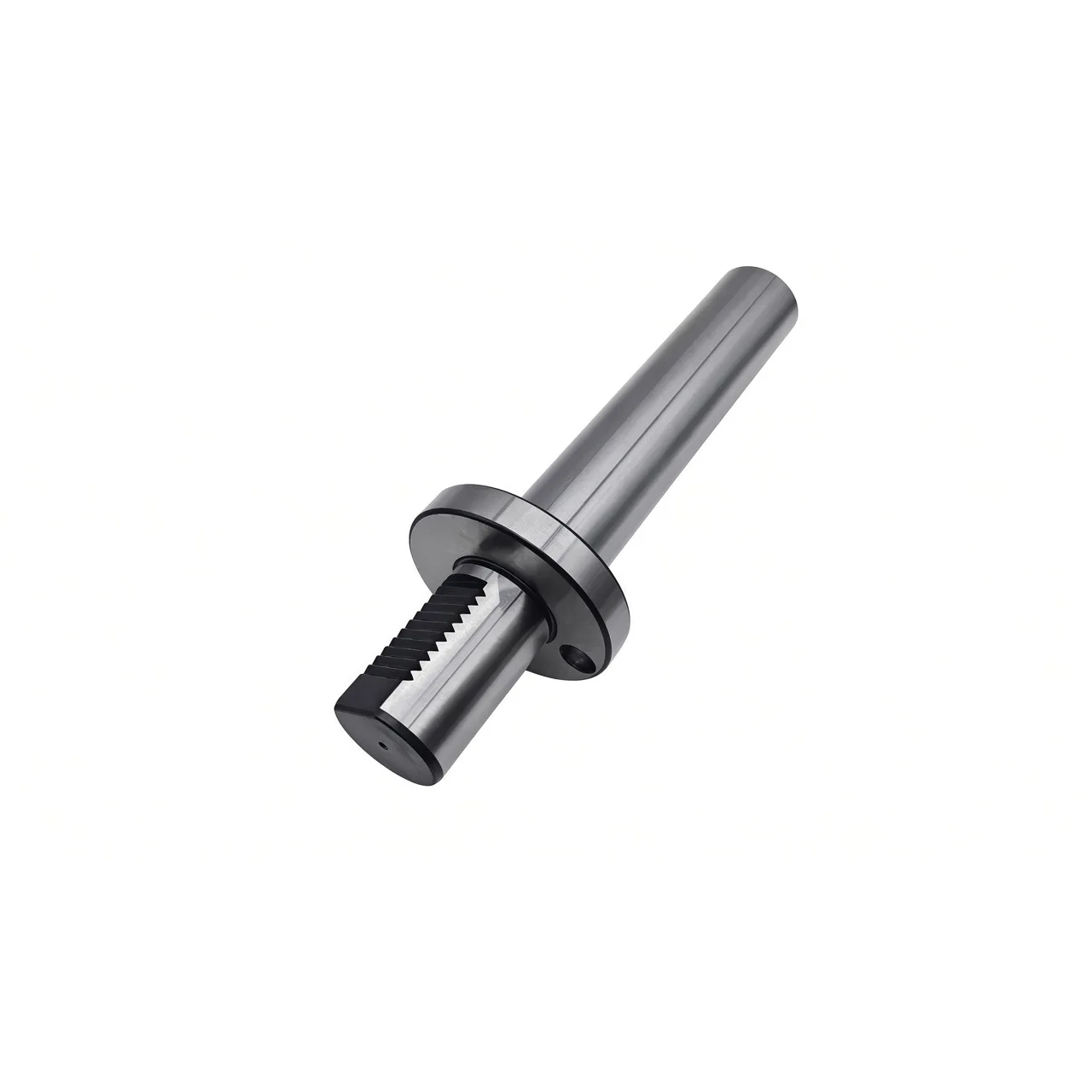

The first image is the supplier's own image for the 30-200 size. The second is a photograph of a physical bar of this type. The size supplied is the size ordered - check the code on the bar against the code on your order when it arrives.

Not the same as our spindle test bars

This is a VDI turret alignment bar for CNC lathes. It is not interchangeable with the BT and HSK spindle test bars we also list - those are tapering arbors that check spindle taper runout, where this one checks the alignment of a lathe turret.

Condition

Supplied as pictured. We make no claim about the condition or origin of this bar beyond what is visible in the photograph, and we will not assert what we cannot verify.

Delivery

15 working days. This bar is sourced from the supplier overseas and that estimate covers supplier dispatch and UK delivery.
