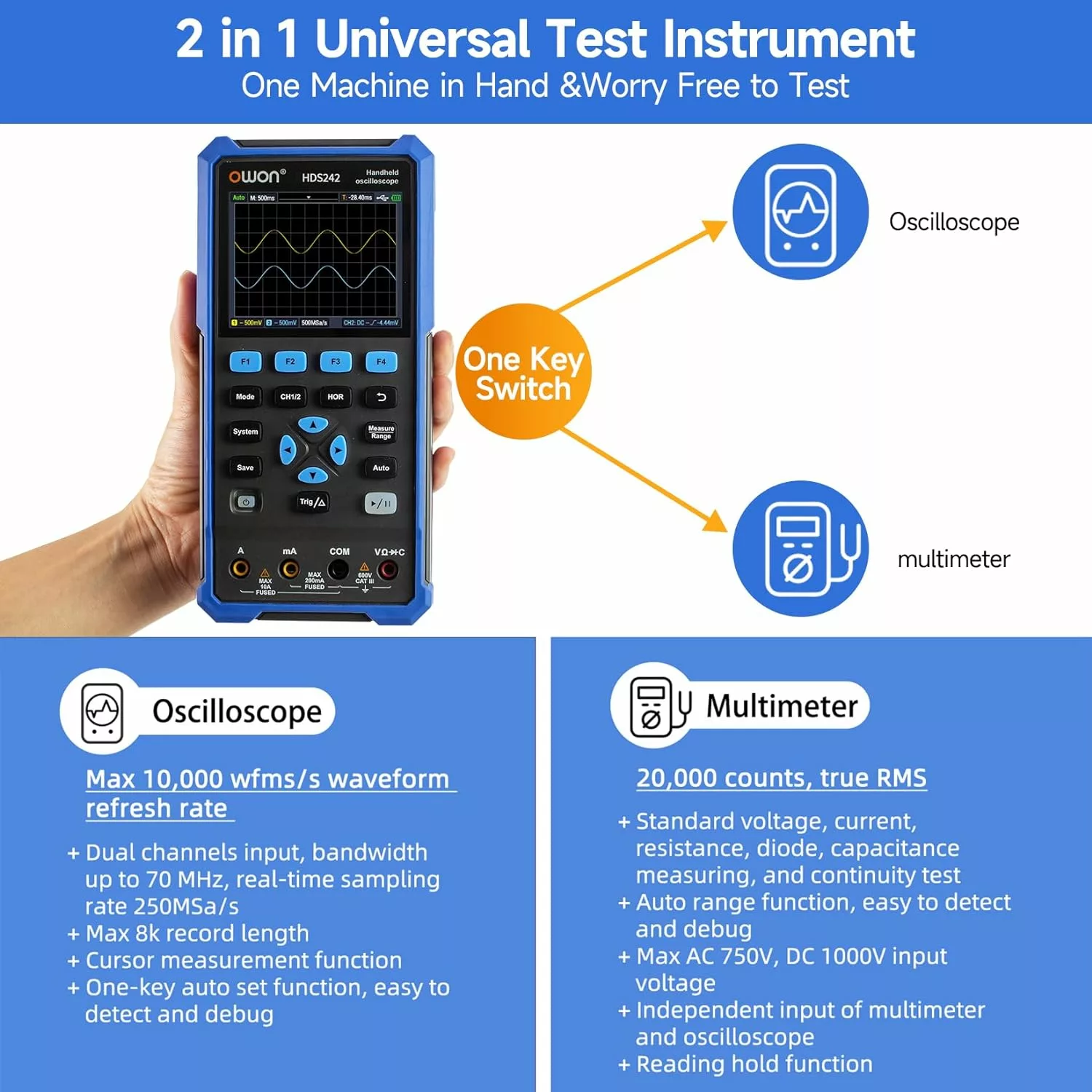

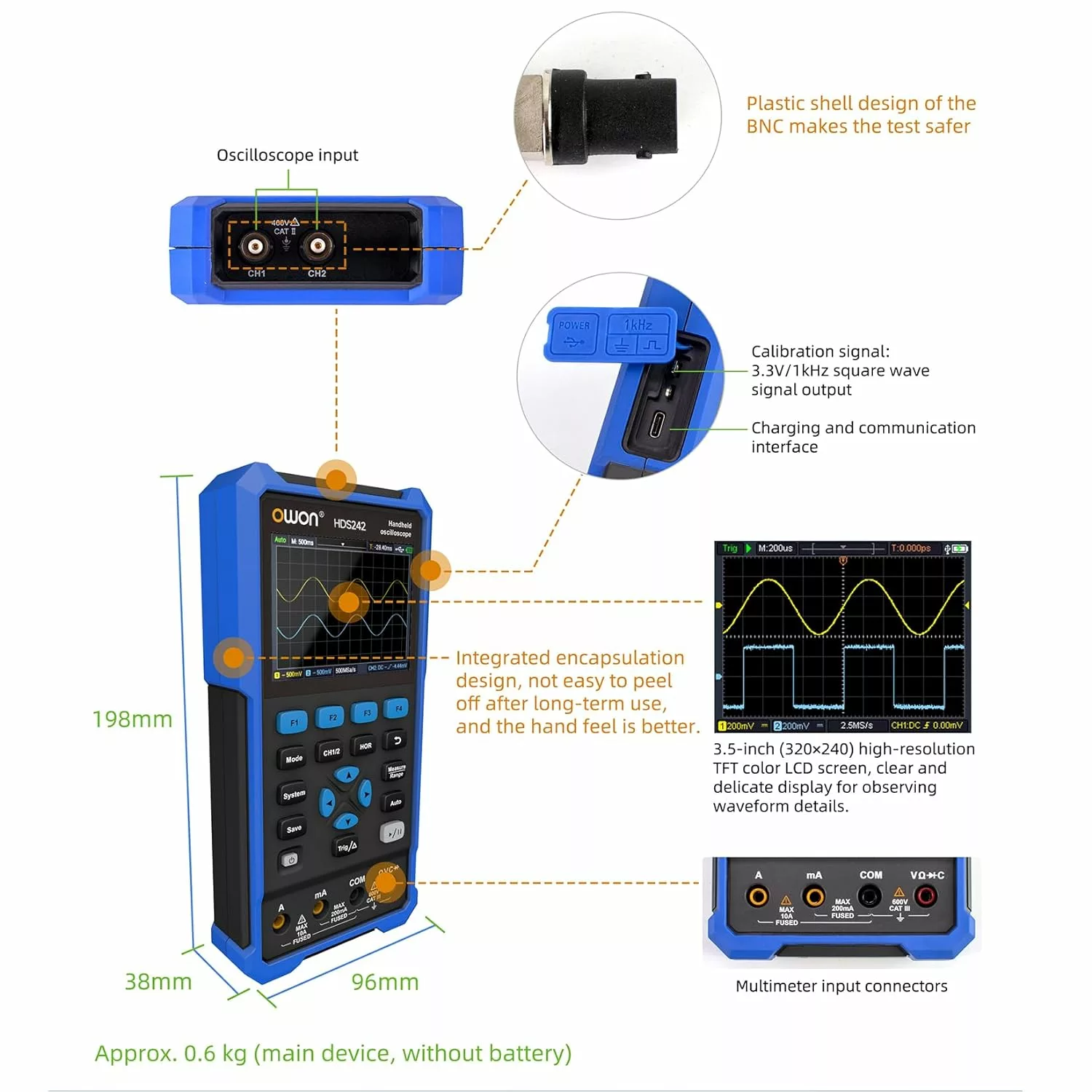

Portable Digitial Oscilloscope + Multimeter

Digitial Oscilloscope and Multi-Meter all in one portable device. Great for field engineers and maintenance deptartments within the Machine Tool Industry.

Specification

• Channels : 2-CH oscilloscop
• Sample Rate : 250MSa/s
• Bandwidth : 40MHz
• Oscilloscope+multimeter+waveform generator,multifunction in one
• 3.5-inch high-resolution,high-contrast color LCD display,suitable for outdoor use
• 18650 lithium battery power,providing up to 6 hours working time
• USB Type-C interface,support power bank,support PC software connection
• Self-calibration function
• SCPI supported,facillitate secondary development.
• + 20,000 counts, true RMS
• Voltage, current, resistance, diode, capacitance measuring, and continuity test
• Auto range function, easy to detect and debug
• Max AC 750V, DC 1000V input voltage
• Independent input of multimeter and oscilloscope
