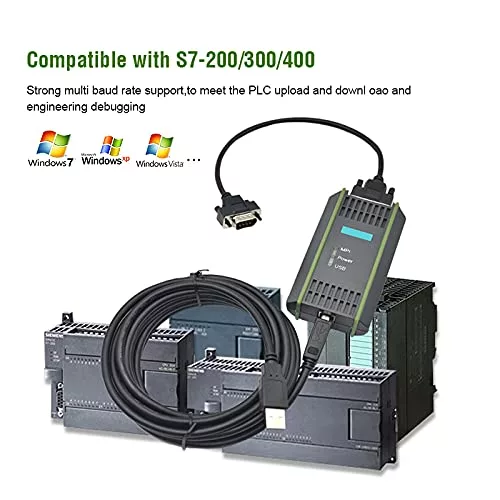

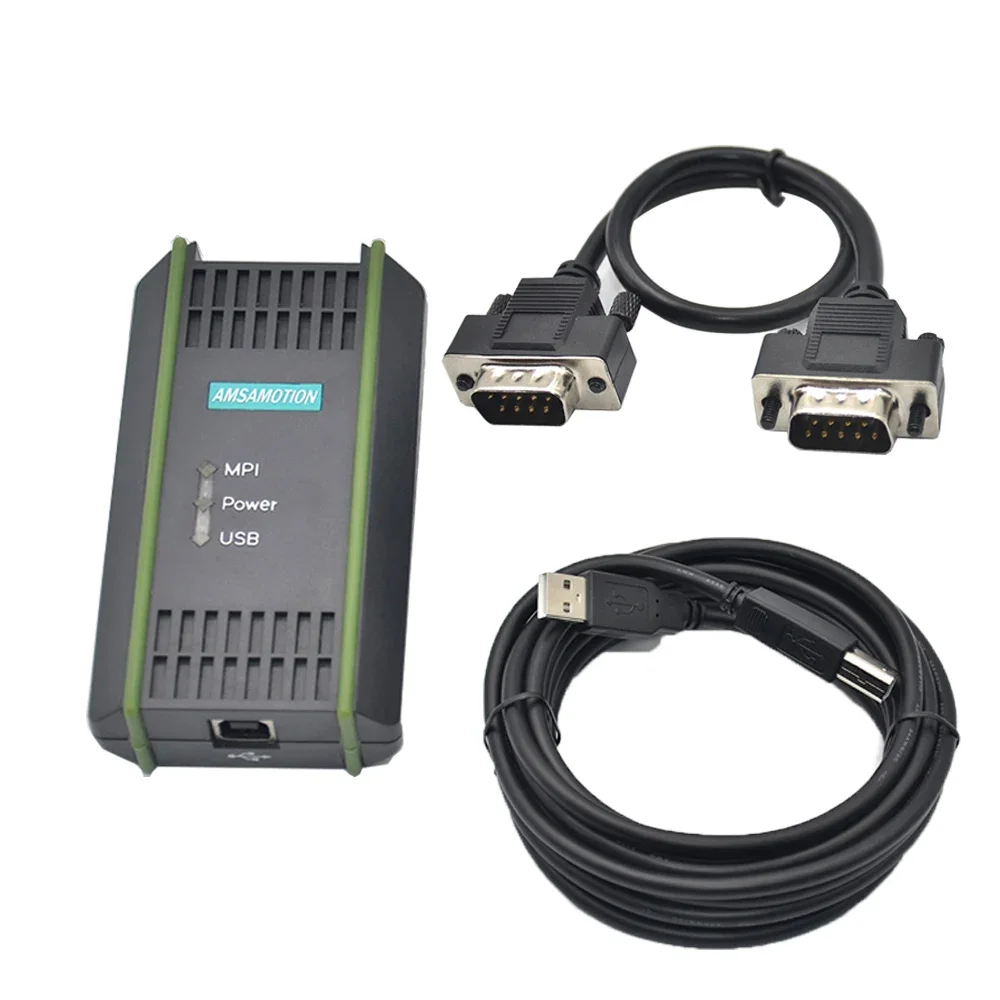

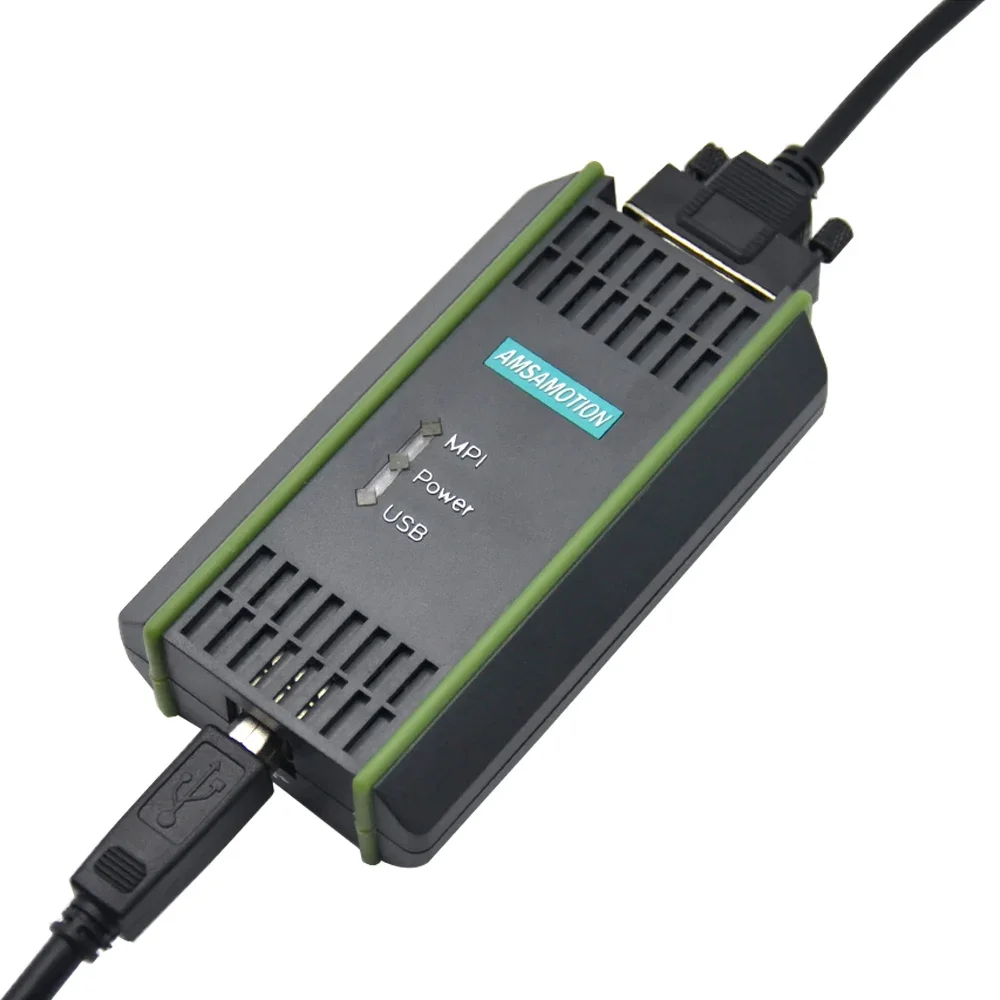

PLC Cable for Siemens S7 200/300/400-6ES7 972-0CB20-0XA0

This is a USB to Siemens S7-200/300/400 PLC Cable with support for MPI and DP multi-master communication. Support for multi-master communication 200PLC and ET200 communications, and PPI.

• Support 840D CNC system programming.
• The installation of Siemens original driver, without generating serial, USB direct selection.
• Support WINXP, WIN7, Windows 10 and above.
• Support 0CB20 eight generations of programming software version: STEP7 V5.2 and higher, STEP7 Micro / Win 4.0 and above
• Full-speed USB device interface, compatible with USB V2.0 specification
• Power: USB bus powered, power consumption of about 100mA, with overcurrent protection and surge protection
• Optical Isolation voltage: 1000VDC
• USB port with anti-surge protection
• Support for MPI baud rate: 19.2Kbps, 187.5Kbps automatically adapt
• Support PPI baud: 9.6Kbps, 19.2Kbps, 187.5Kbps automatically adapt
• Support for long-distance communications, the maximum communication distance of 1000 m (RS485 end, when the baud rate is 187.5Kbps)
• LEDs with power, data reception indicator, the data transmission indicator
