Kondia 1050 with Heidenhain LE410 Control Electrical Manual (1999)
£1.99+ VAT
No delivery charge · Instant download after purchaseQty
Instant download after payment
PDF, ZIP, and other digital formats
Download links sent via email
Access downloads in your account
Purchase orders accepted

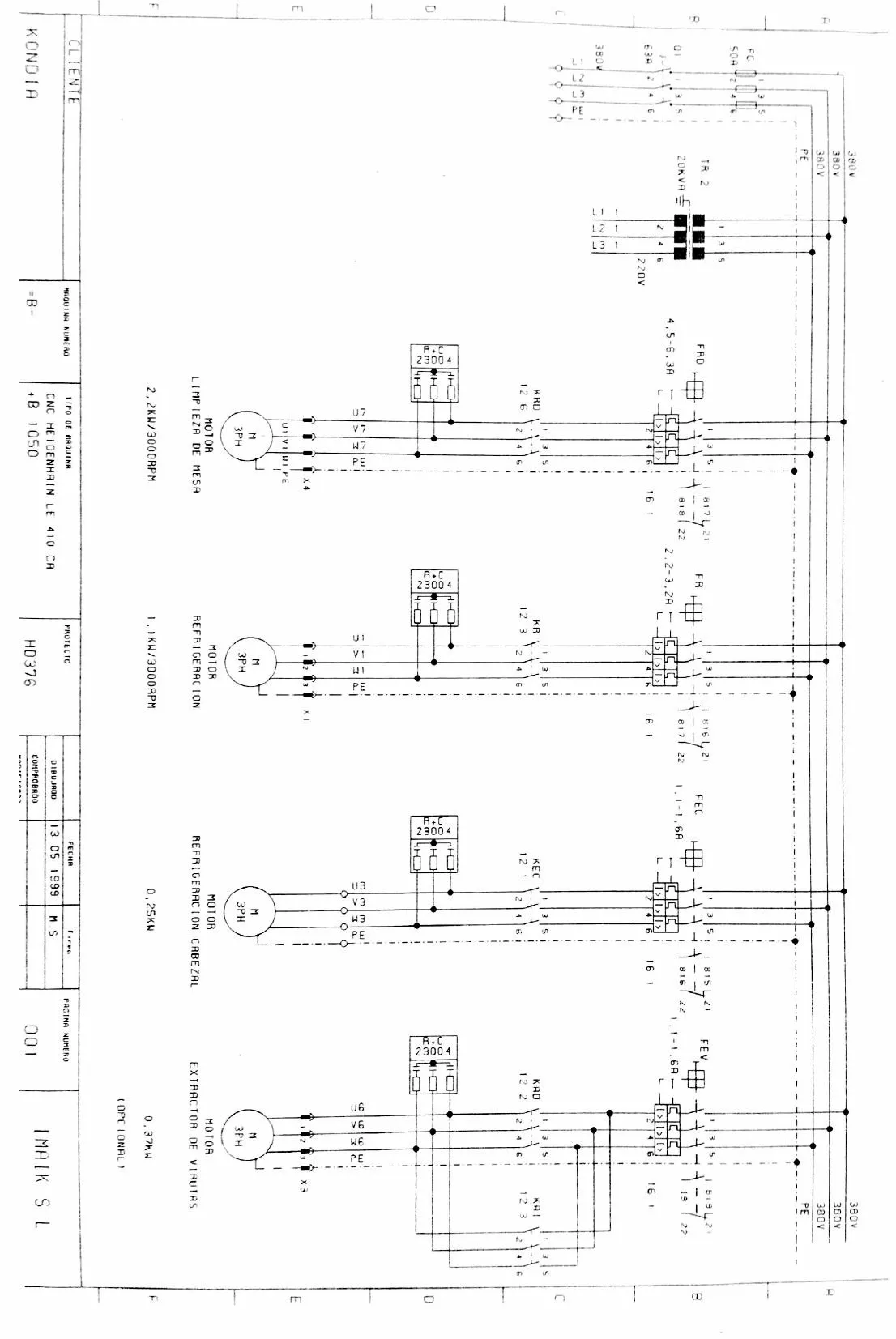

Kondia 1050 with Heidenhain LE410 control — electrical manual PDF. Complete electrical schematics, LE410 control wiring, axis/spindle circuits, and safety wiring for Kondia 1050.
Electrical manual for Kondia 1050 CNC milling machine fitted with Heidenhain LE410 control. Covers the complete electrical installation, wiring, and control configuration for this Kondia machine platform.
Contents include:
- Complete electrical schematics
- Heidenhain LE410 control wiring and configuration
- Axis and spindle drive circuits
- PLC input/output allocation
- Safety circuit wiring
Available as an immediate PDF download. This manual is the essential reference for maintaining and fault-finding on Kondia 1050 machines with Heidenhain LE410 control.
