HTNC TZ-50 Dual Display CNC Lubrication Pump 1L Tank 110V AC 6mm Outlet Automatic Oil Pump
HTNC TZ-50 Dual Display CNC lubrication pump — 1L tank, 110V AC, 6mm outlet, 28W, 150cc/min. Automatic timed lubrication for CNC machine tools.
Automatic electromagnetic lubrication pump for CNC machine tools and industrial
equipment, from HTNC (Taiwan Tongshi Pump Industry Limited / HL Motion). The TZ-50 series
delivers metered oil to slideways, guide rails, ball screws and leadscrews on a timed
interval, so lubrication continues without operator attention.

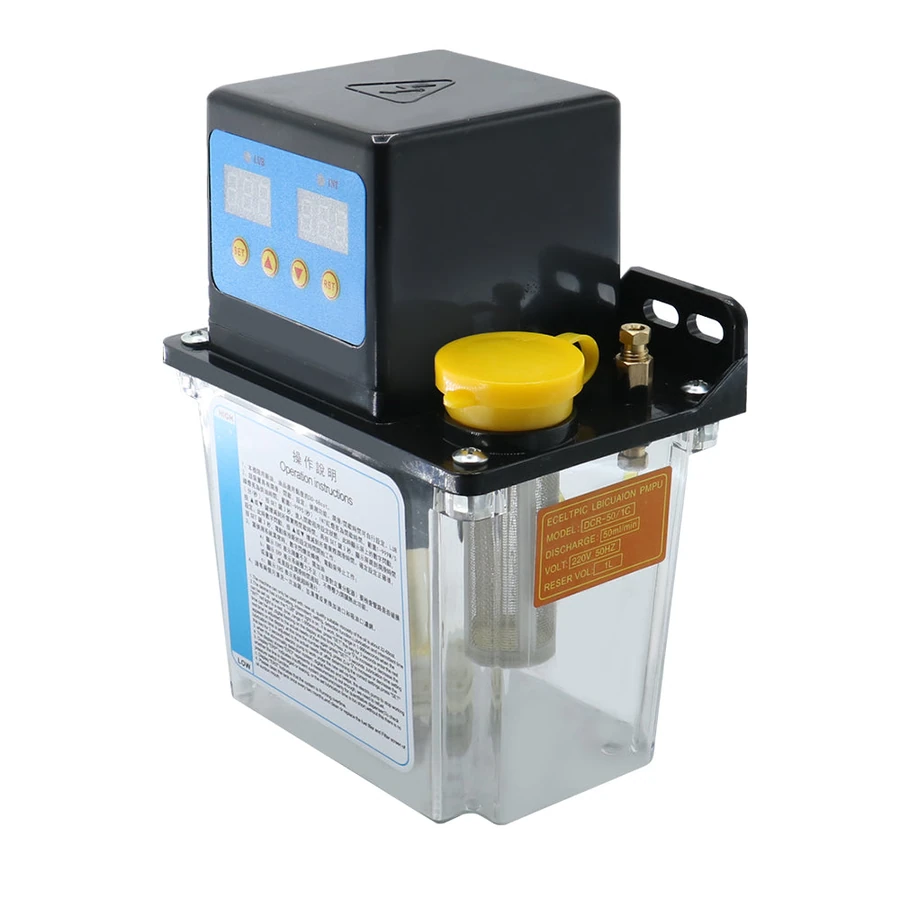

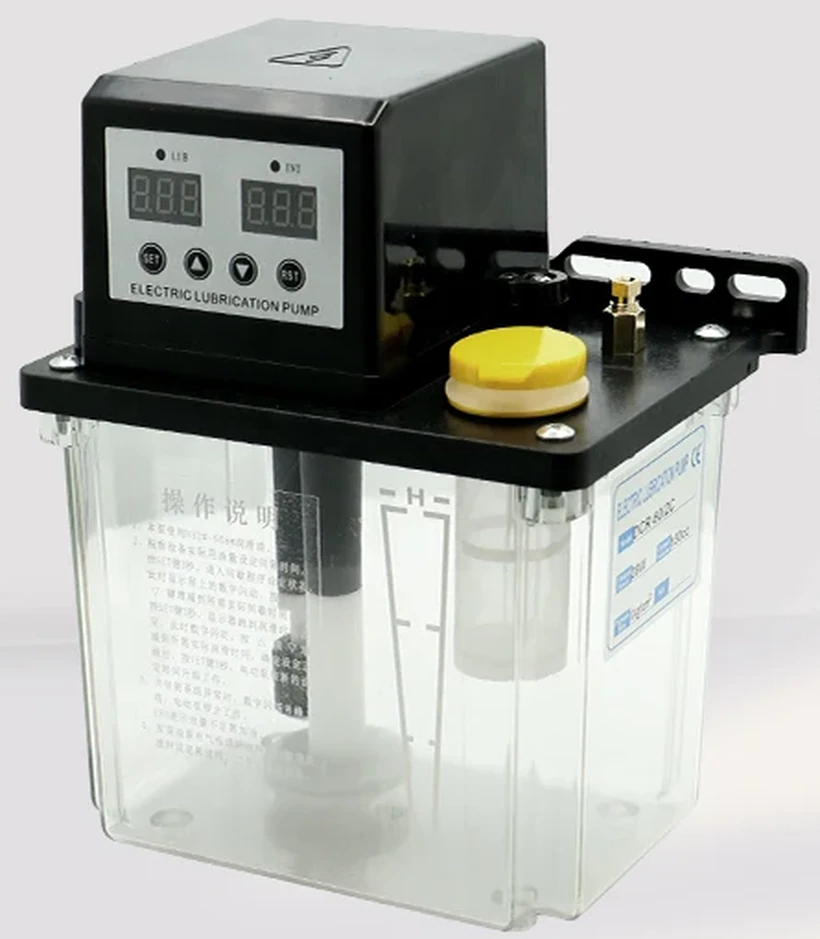

About the photographs: the images show the HTNC TZ-50 series lubrication pump. The unit you receive is the TZ-50/1C (1L tank, dual display, 110V AC supply) specified in the table below. The photograph is a representative image of the series and may not show the exact tank capacity or supply voltage ordered.
HTNC TZ-50 series — Dual Display configuration
- Model: TZ-50/1C
- Tank capacity: 1L
- Controller: Dual Display — programmable working (run) time and interval (rest) time
- Supply voltage: 110V AC
- Oil outlet: 6 mm
- Flow rate: 150 cc/min (150 ml/min)
- Motor power: 28 W electromagnetic piston pump
- Rated pressure: 1.6 MPa (TZ-50 family rating; this version is supplied without a pressure gauge — plain 6 mm outlet)
- Run time: 1–999 s (adjustable)
- Interval time: 1–999 min (adjustable)
- Reservoir: transparent tank with HIGH/LOW level marks and integrated oil fill cap with filter screen
- Mounting: side flange bracket with bolt holes
What it does
An electromagnetic piston pump controlled by an on-board microcontroller. You set the
lubrication run time and the interval between cycles; the pump then doses oil automatically.
The dual display controller shows both the run time and interval time on twin 3-digit LED displays, with SET/up/down/RST buttons for programming.
Suitable for
CNC machining centres, lathes, milling machines, engraving/routing machines, 3D printers,
textile and printing machinery, and general automated equipment requiring automatic
guideway and leadscrew lubrication.
