Heidenhain TNC 530 Technical Manual

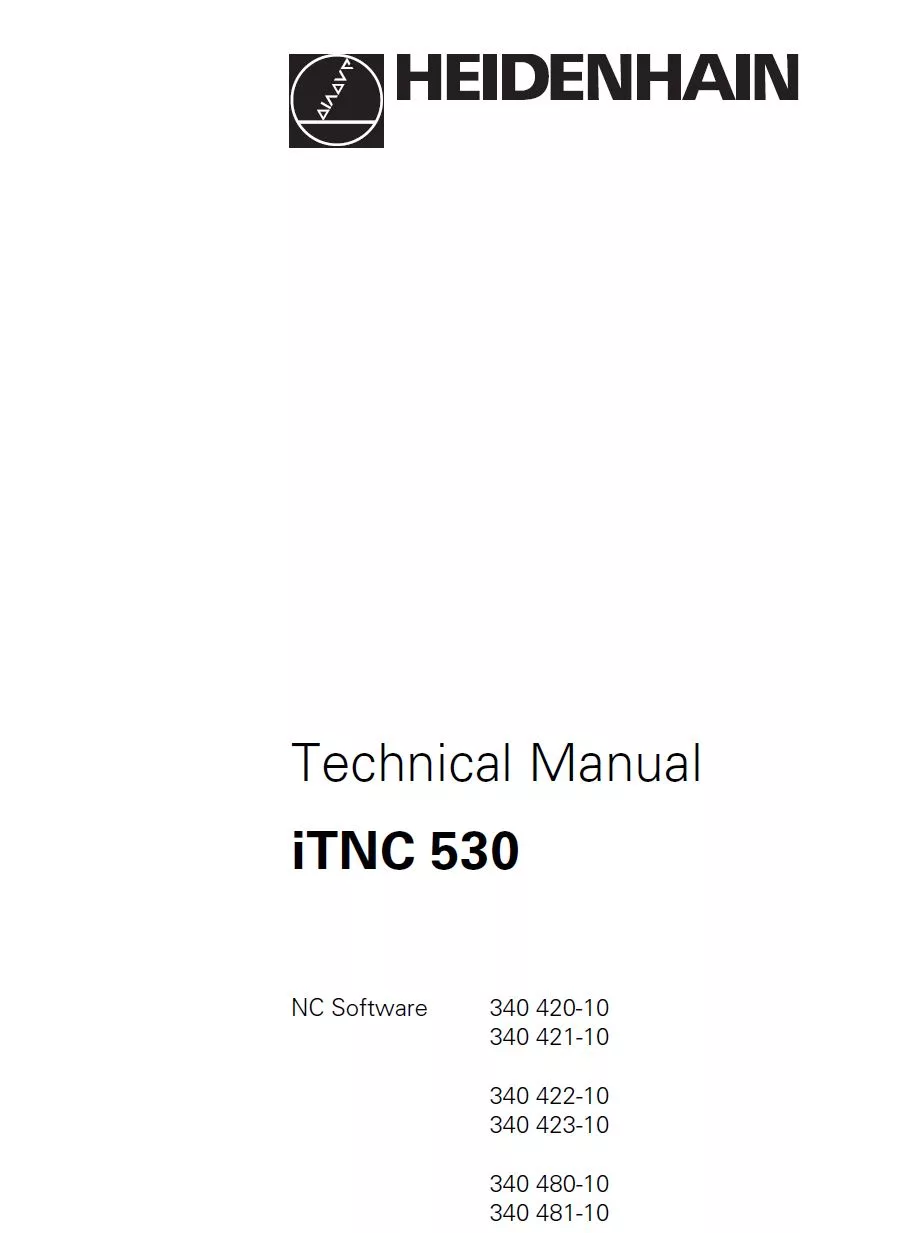

Heidenhain TNC 530 Technical Manual — 1286 pages of complete technical documentation covering hardware architecture, software configuration, full machine parameter catalogue, PLC programming, drive optimisation, and fault diagnostics. The definitive engineering reference for the TNC 530.
Technical manual for the Heidenhain TNC 530 — one of the most widely used and respected CNC controls in precision engineering. The TNC 530 was the direct predecessor to the iTNC 530 and was specified on a vast range of 3-axis and 5-axis machining centres from manufacturers including DMG, Deckel Maho, Grob, Hermle, and Röders.
At 1286 pages, this is the most comprehensive TNC manual available. It covers the complete technical specification, commissioning, and maintenance of the TNC 530 system.
Contents include:
- Complete hardware architecture and module descriptions
- System software installation and configuration
- Full machine parameter catalogue
- PLC programming and I/O allocation
- Axis drive optimisation and servo tuning
- Safety system and emergency stop configuration
- Comprehensive fault code and diagnostic reference
