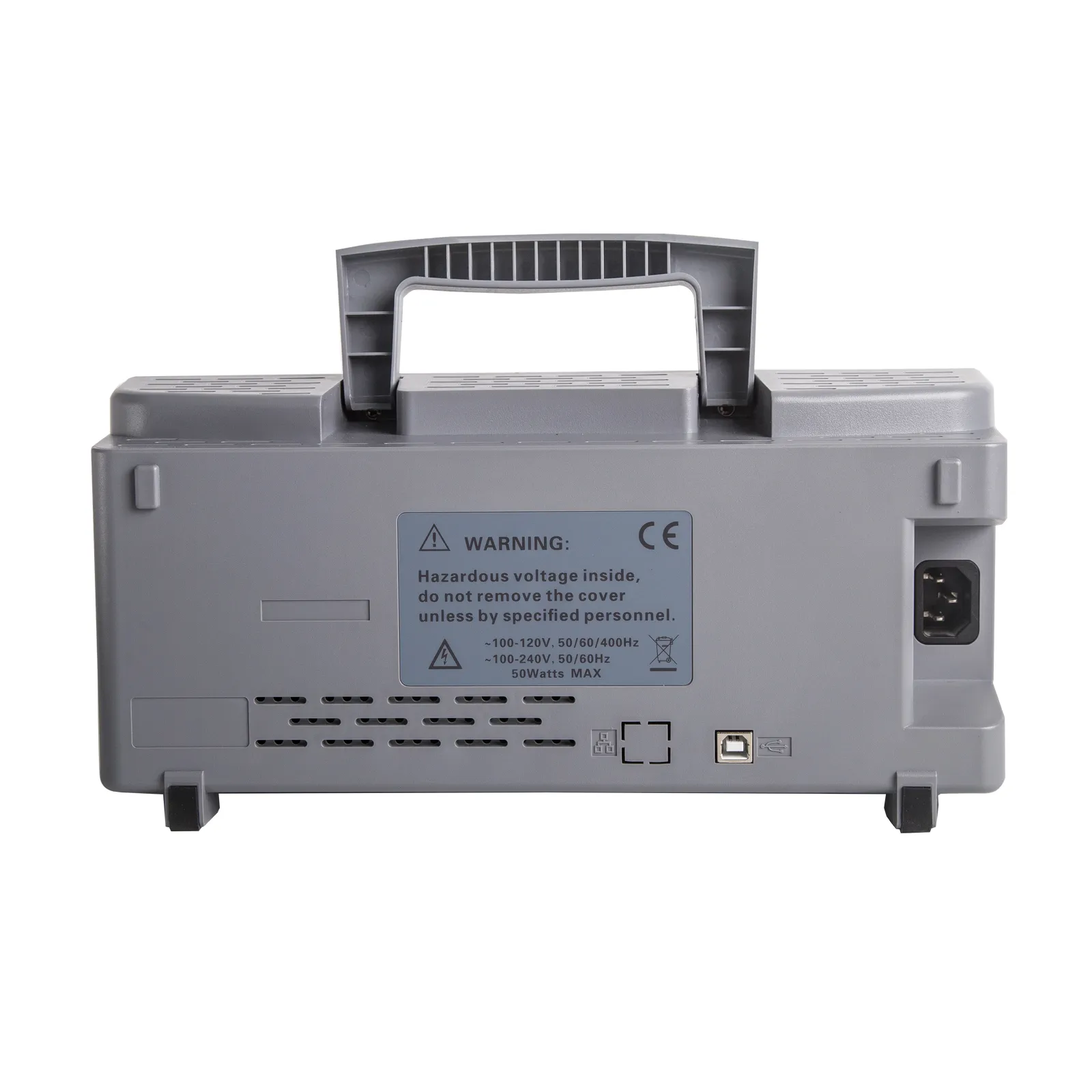

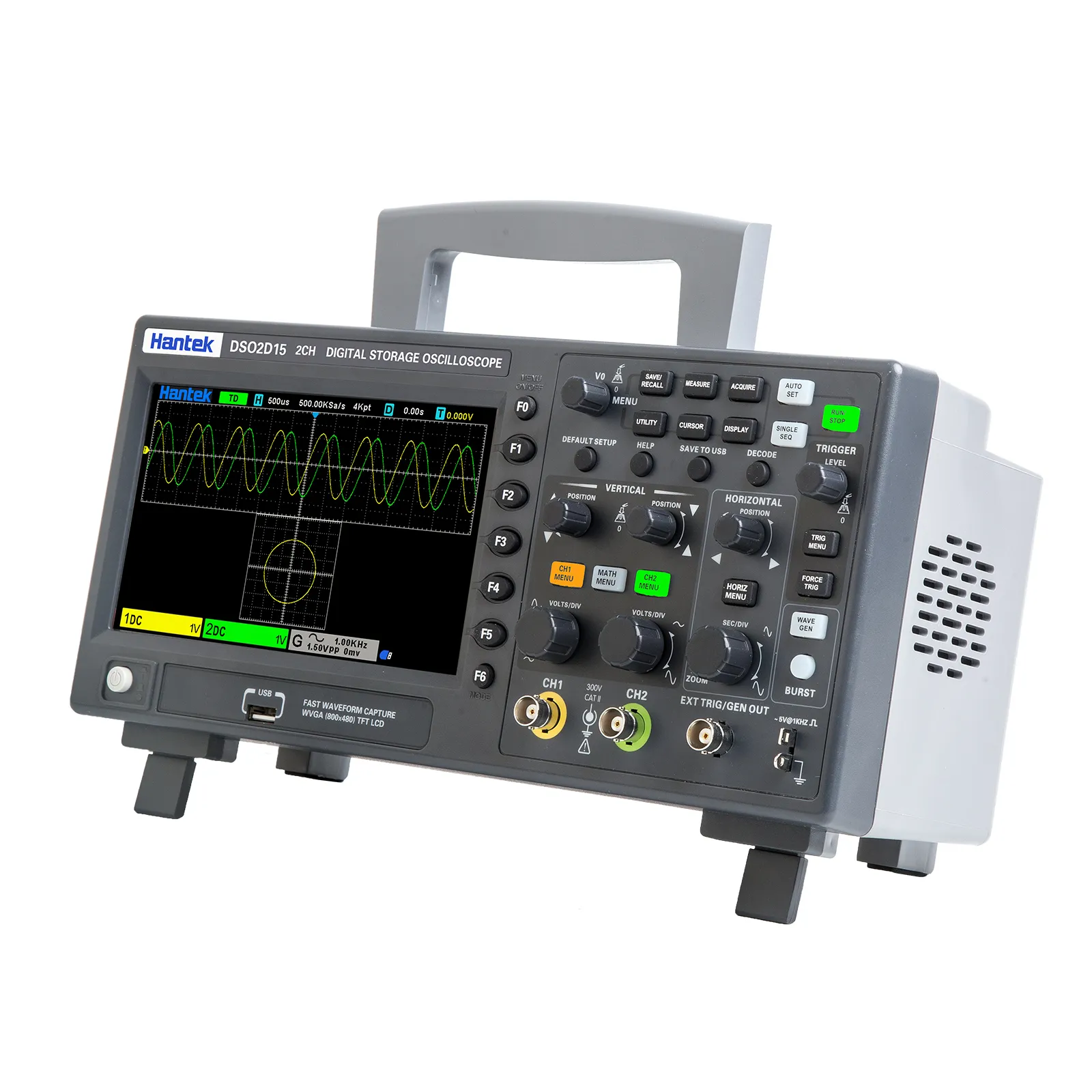

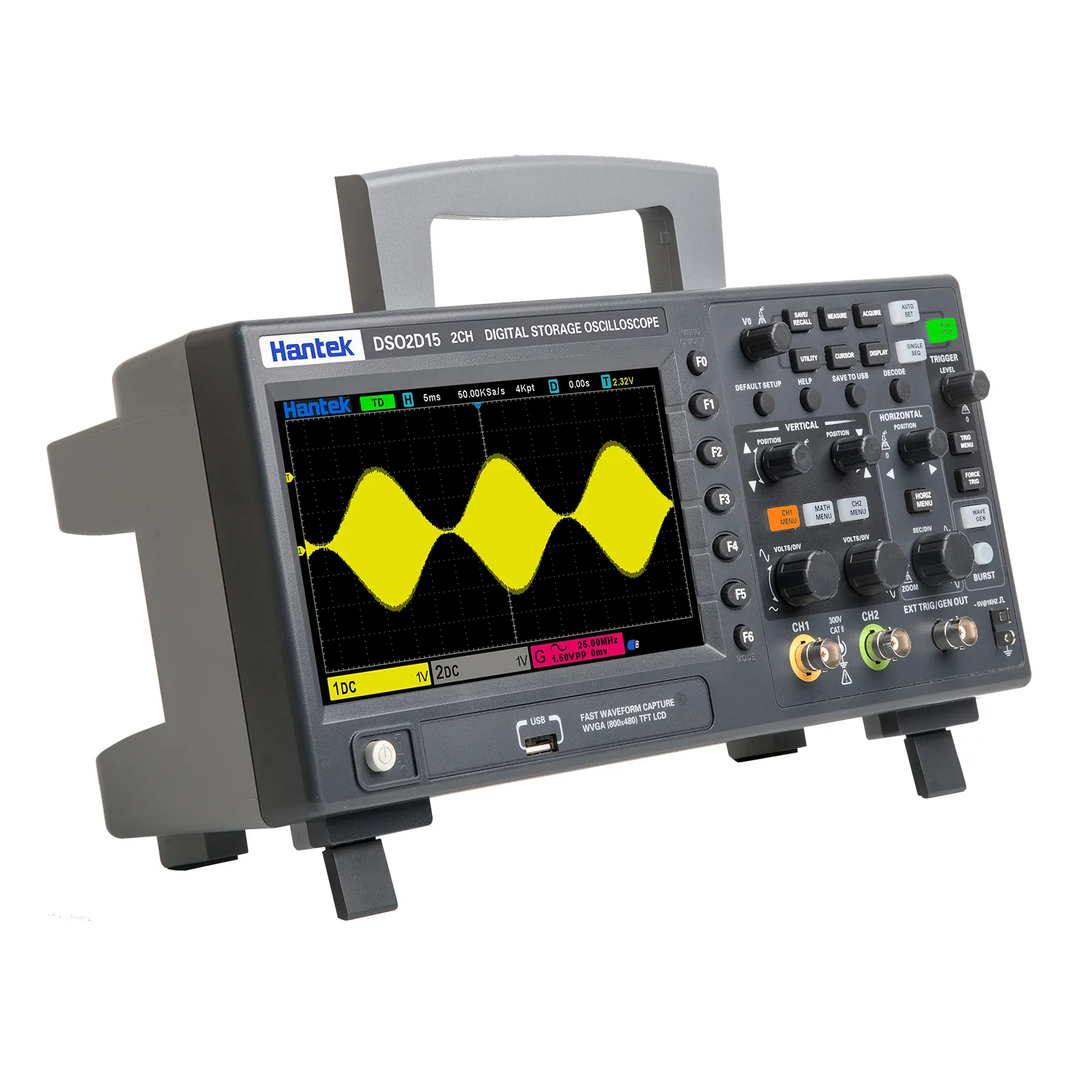

Hantek Dual Channel Signal Generation Oscilloscope 150Mhz 1Gsa/S
Some items ship directly from our suppliers. No additional charges — ever.
£329.95+ VAT
+ VAT · Free UK deliveryQty
Free returns within 30 days
Dispatched from UK — no hidden charges
Technical support from our engineers
Purchase orders accepted
This dual channel oscilloscope is perfect for testing encoders, signal monitoring and everything inbetween. An essential in any engineers toolkit!
This dual channel oscilloscope is perfect for testing encoders, signal monitoring and everything inbetween. An essential in any engineers toolkit!
- 2 channels, both are respectively controlled by independent knobes;
- 100 MHZ, 150MHZanalog channel bandwidth;
- 1 GSa/s real-time sample rate;
- 8Mmemory depth;
- Vertical range2mV/div ~ 10V/div;
- Built-in 1 CH5MHz waveform generator;
- Vertical resolution :8bit;
- Trigger:Edge,Pulse width,Video,Slope,Overtime,Window,Pattern,Interval,Delay,UART,LIN,CAN,SPI,IIC;
- CAN decode and protocol analysis:RS232/UART、I2C、SPI、CAN、LIN
- Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;
- 5 bits digital voltage meter and 6 bits hardware frequency indicator function;
- 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;
- 2 sets of digital voltmeter;
- Support threshold testing, free measurements within the screen;
- Abundant SCPIremote command control;
- Many external interface:USB Host/Device.
