Hanley Machine Tools HMT-T2 CNC Tramming Tool — Dual 0.01mm Metric DTI Gauge, 100mm Centres
Hanley Machine Tools HMT-T2 tramming gauge for setting CNC spindle tram to 0.01mm. Two metric dial indicators 100mm apart, interchangeable 1/4in and 1/2in stainless shanks, carry case included.
The Hanley Machine Tools HMT-T2 is a dual dial-indicator tramming gauge for setting the tram level of a CNC spindle or cutting head square to the machine bed. It is held in the spindle toolholder, so the machine itself does not have to be moved to set the tram.
What tram is, and why it matters. A machine spindle is not mounted square to the bed - it sits at a small angle, called the tram. Left uncorrected that angle makes every cut deeper at one corner of the workpiece than the other, so a job that should be a 10 mm face comes out 10.2 mm at one end. Tramming squares the spindle up to the bed and removes the error; this gauge measures that error directly with two dial indicators instead of by eye.

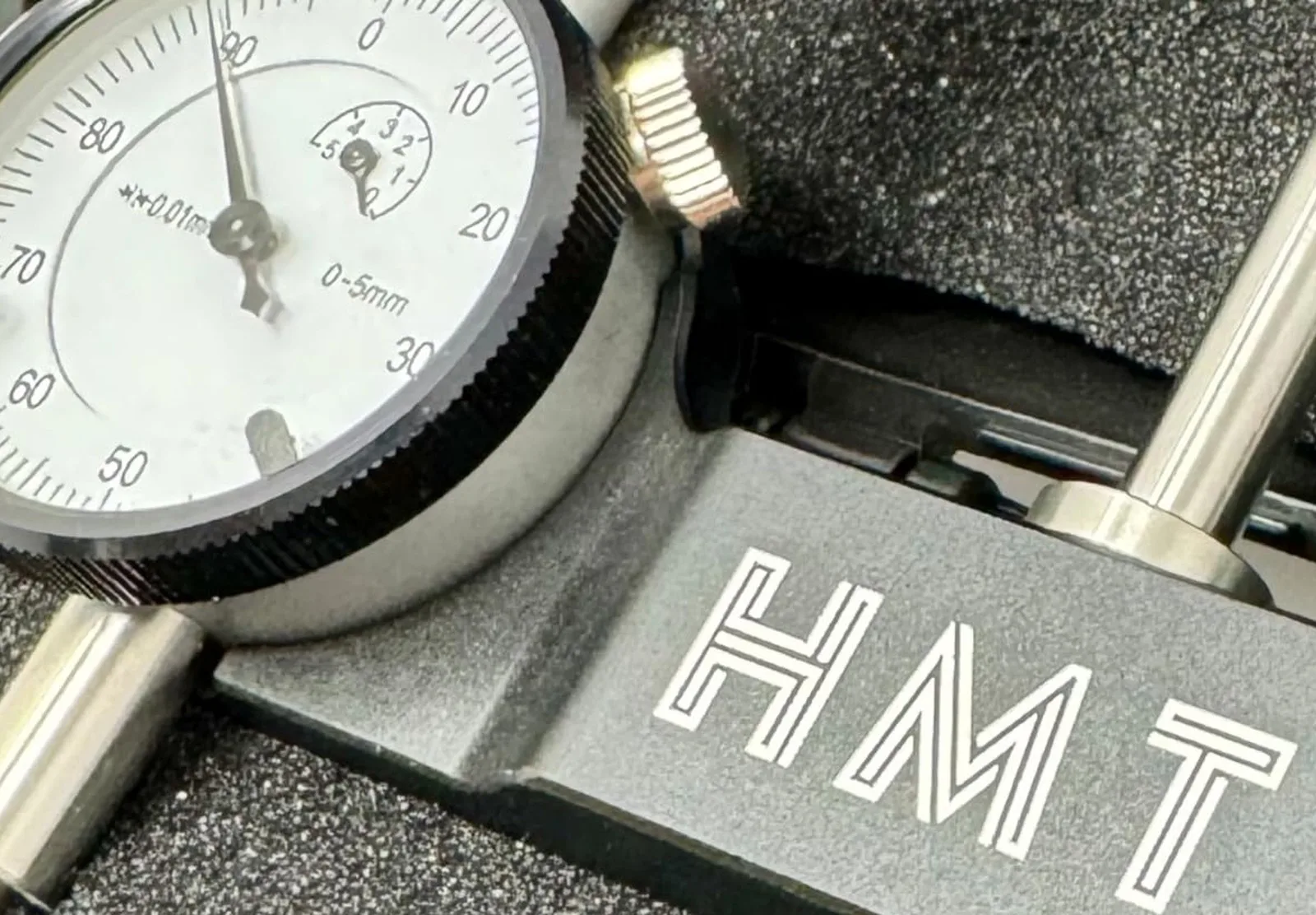

Two dial indicators, fitted. The gauge carries two metric dial test indicators with a 0-5 mm range and 0.01 mm graduations, mounted 100 mm apart between the dial centres. Two dials are used so the height difference across the spindle can be read at both ends and squared off, rather than at a single point. The dials are calibrated metric, accurate to 0.01 mm.
Two shank sizes supplied. The gauge is supplied with two interchangeable stainless steel shanks - 1/4 in (6.35 mm) and 1/2 in (12.7 mm) - so it can be held in the toolholder bores used by most spindle arrangements without a separate adapter. Check the bore your machine's toolholder takes before ordering.
In the box

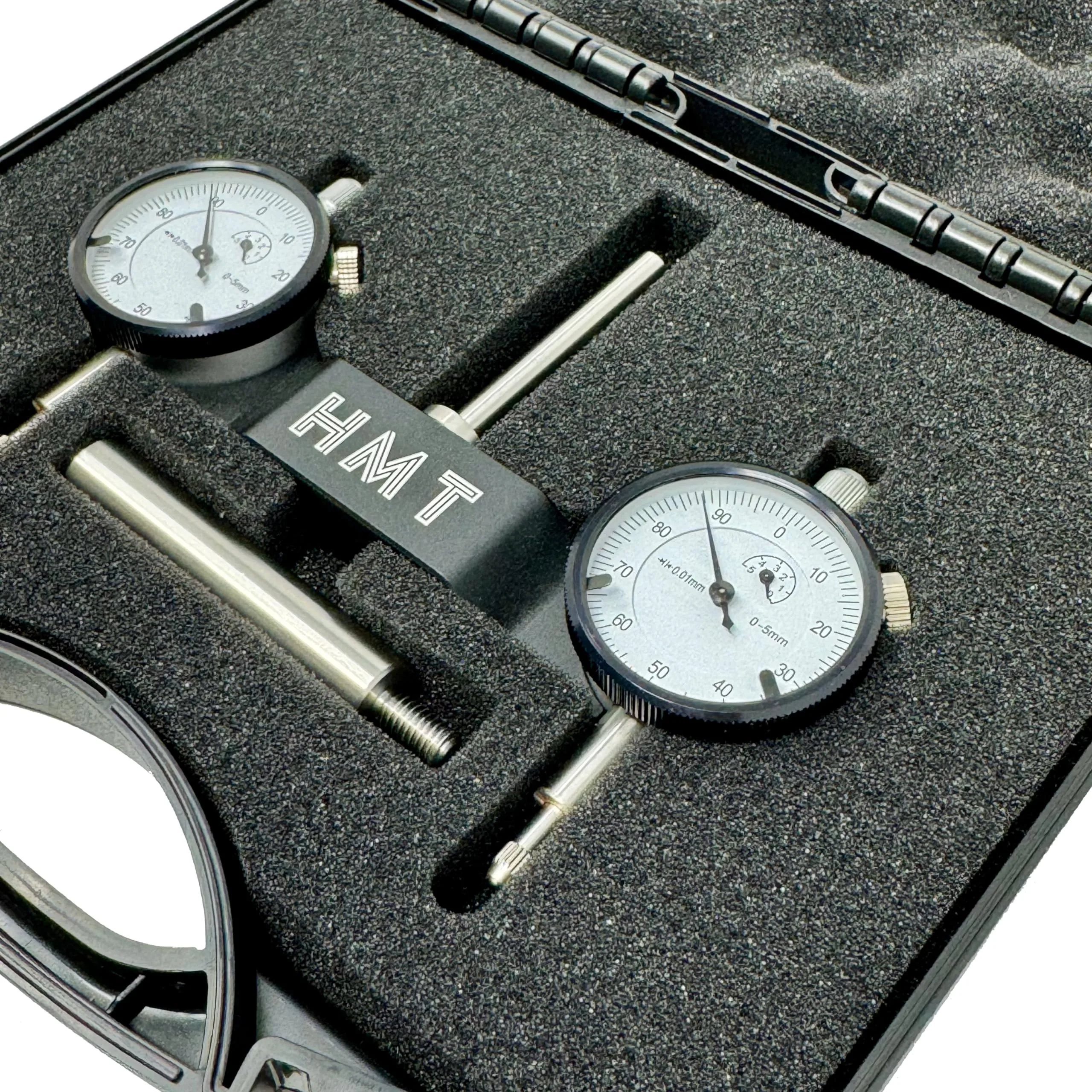

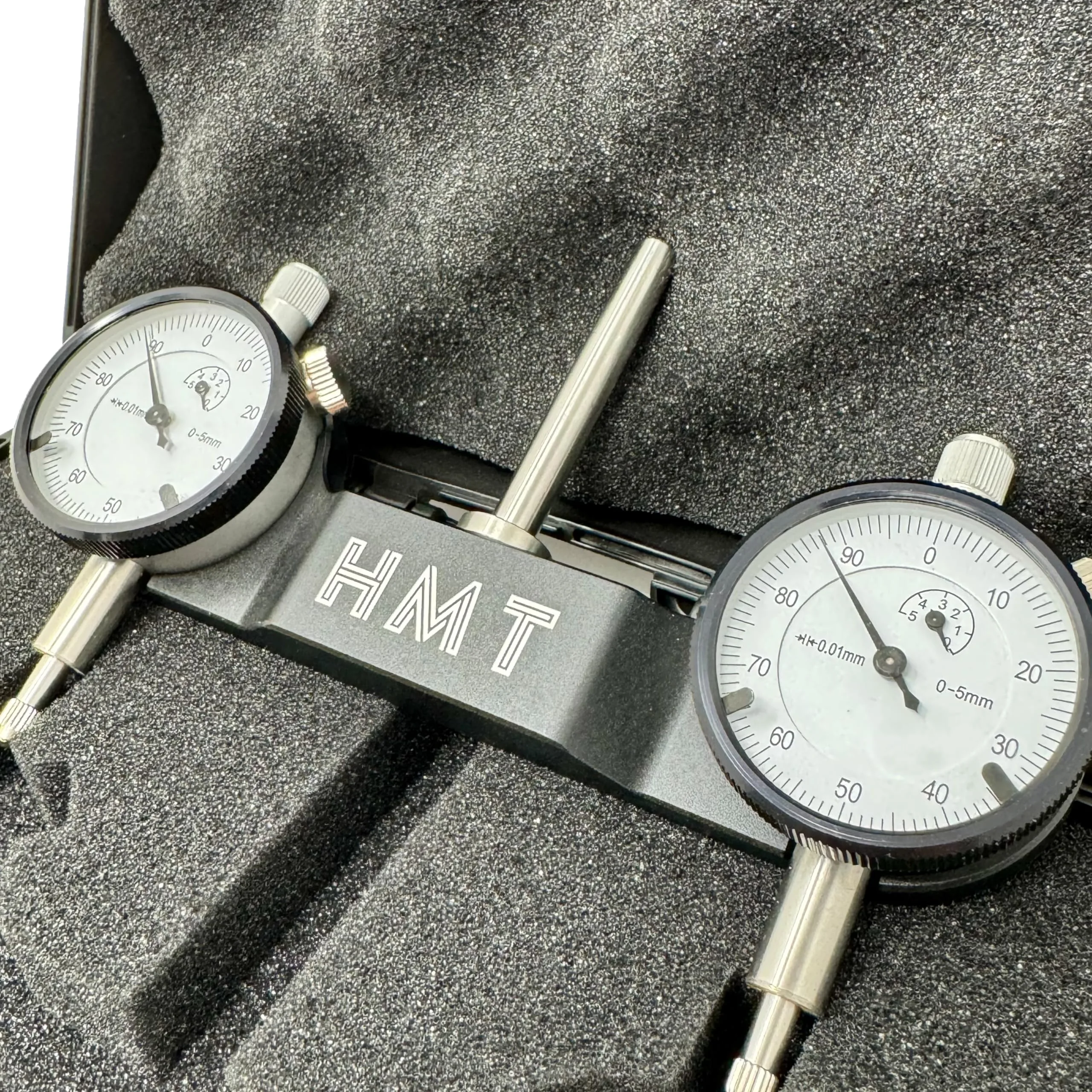

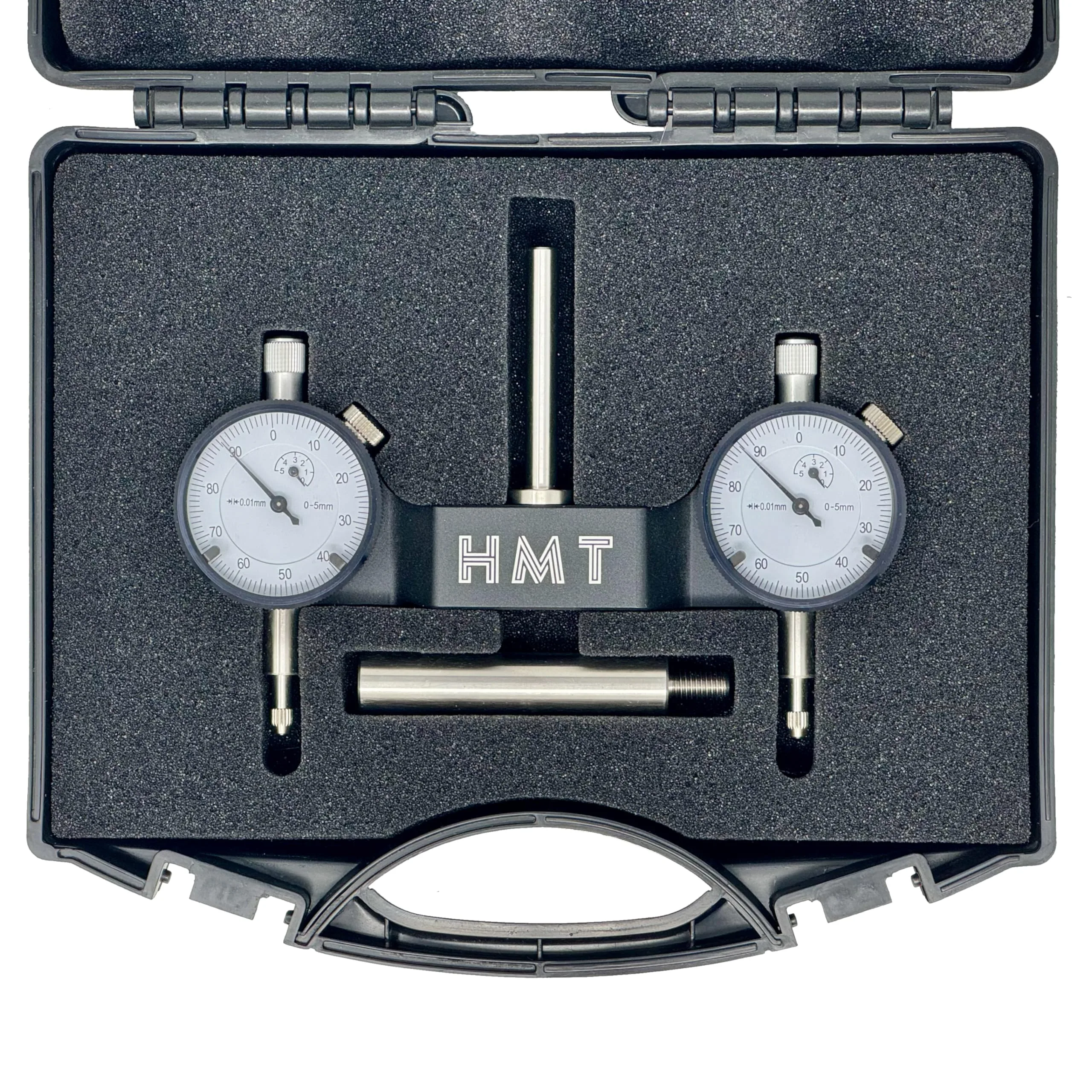

- HMT-T2 tramming gauge with two metric dial indicators fitted
- Interchangeable stainless steel shank, 1/4 in (6.35 mm)
- Interchangeable stainless steel shank, 1/2 in (12.7 mm)
- Protective foam-lined carry case
- Instructions - available by QR code on the box
Specification
| Brand | Hanley Machine Tools |
|---|---|
| Model | HMT-T2 |
| Type | Tramming gauge - dual dial test indicator |
| Accuracy | 0.01 mm |
| Dial indicator range | 0-5 mm |
| Between dial centres | 100 mm |
| Shank sizes | 1/4 in (6.35 mm) and 1/2 in (12.7 mm) - interchangeable stainless steel |
| Material | 6061 aluminium body, stainless steel shanks |
| Dimensions | 14 x 9.5 x 2.1 cm |
| Weight | 470 g |
| Colour | Black |
| Case | Protective foam-lined carry case included |
| Instructions | QR code on box |
| Suitable for | Haas, Doosan, Mazak, Onefinity, Shapeoko, Open Builds, Stepcraft, Inventables, Fox Alien |
| Warranty | 12 months |
Machine suitability. The manufacturer lists the HMT-T2 for Haas, Doosan, Mazak, Onefinity, Shapeoko, Open Builds, Stepcraft, Inventables and Fox Alien machines. If your machine is not listed, check the toolholder bore size - the gauge will work on any machine you can hold a 1/4 in or 1/2 in shank in.
