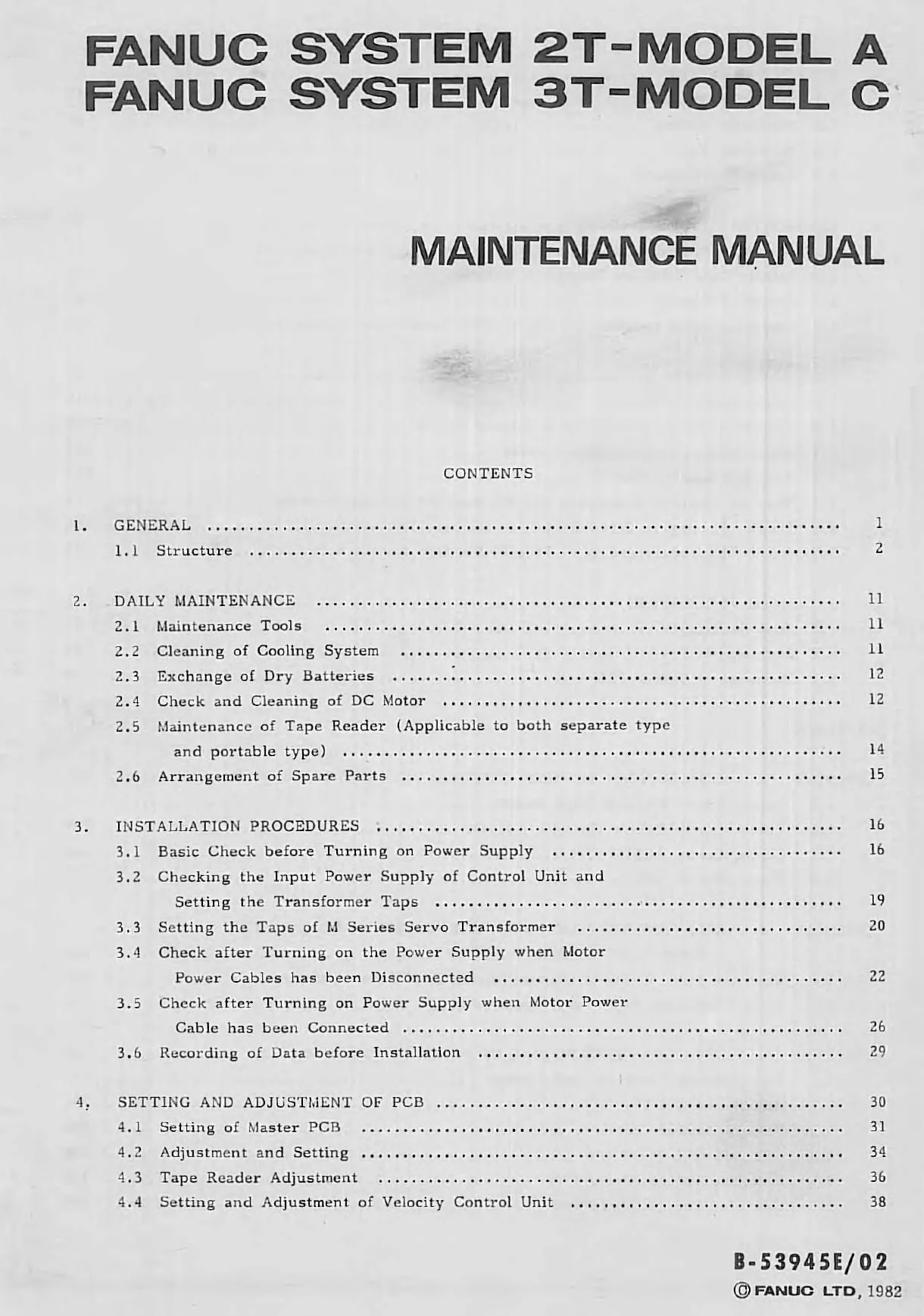

Fanuc 2T Model A & Fanuc 3T Model C Maintenance Manual
£2.45+ VAT
No delivery charge · Instant download after purchaseQty
Instant download after payment
PDF, ZIP, and other digital formats
Download links sent via email
Access downloads in your account
Purchase orders accepted
Fanuc 2T Model A and Fanuc 3T Model C maintenance manual — complete hardware architecture, power supply, memory, I/O, servo/spindle configuration, and alarm code reference for these classic Fanuc lathe controls.
Maintenance manual for Fanuc 2T Model A and Fanuc 3T Model C CNC lathe controls. These compact CNC systems were widely used on Japanese and Taiwanese CNC lathes throughout the 1980s and 1990s. This manual is the essential reference for maintaining and troubleshooting these classic Fanuc control systems.
Contents include:
- System hardware architecture and module descriptions
- Power supply configuration and troubleshooting
- Memory system and option board installation
- Input/output system and PMC circuits
- Axis servo drive configuration
- Spindle control and threading synchronisation
- Complete alarm code catalogue
- Board-level troubleshooting procedures
