A50L-0001-0332 160A 600V IGBT Module For Fanuc Alpha Spindle Amplifiers - Fuji 6MBP160RTA060-01

160A 600V six-pack IGBT/IPM module. Fanuc A50L-0001-0332 cross-references to Fuji 6MBP160RTA060-01. Fitted in Fanuc Alpha series AC spindle amplifiers.

Fanuc A50L-0001-0332 — Fuji 6MBP160RTA060-01 IGBT module

A 160A, 600V six-pack intelligent power module (IPM) used in Fanuc Alpha series AC spindle
amplifier modules. This is the module that fails when an amplifier trips on overcurrent or reports
a power module fault.

Cross reference

• Fanuc order code: A50L-0001-0332
• Fuji Electric code: 6MBP160RTA060-01 — also marked 6MBP160RTA-060

Specification

• Current rating: 160A
• Voltage rating: 600V
• Configuration: 6-pack IPM (three-phase inverter) with integrated gate drive and protection
• Terminations: B, P, N, U, V, W screw terminals plus control pin header
• Origin: made in Japan

Fitment

Fitted in Fanuc Alpha series AC spindle amplifier modules. That fitment is stated by
independent Fanuc repair specialists rather than by a strip-out we have carried out ourselves, so
treat it as a strong lead rather than a guarantee. If you are working to a specific amplifier part
number, send it over and we will confirm before you order.

Make sure it is not one of these

Three different 160A modules are easy to confuse, and only the first is this part:

• 6MBP160RTA060-01 = A50L-0001-0332 — this listing
• 6MBP160RUA060F-01 = A50L-0001-0374 — different suffix, different part
• 6MBP160VCA060-51 = A50L-0001-0436 — VCA series, Fanuc-specific package

Condition

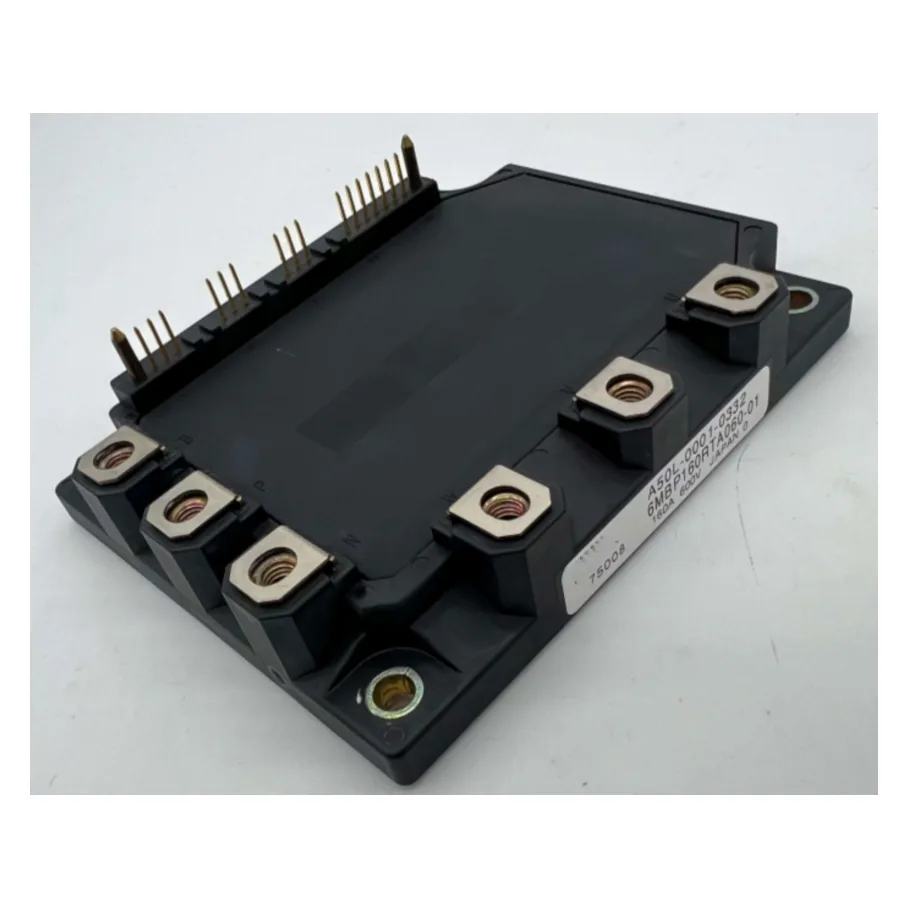

Supplied as pictured. The module is genuine Fuji Electric and its label reads
A50L-0001-0332 / 6MBP160RTA060-01 / 160A 600V JAPAN. The supplier lists it as original stock but does
not describe it as new, and the photograph shows a taped label and terminal witness marks typical of
pulled modules — so we are not claiming new condition. If condition is critical, ask us for a
photograph of the exact unit before ordering.

Delivery

10 working days from order.
