A50L-0001-0329 80A 600V IGBT Module For Fanuc Servo And Spindle Amplifiers - Fuji 6MBP80RTA060
FANUC A50L-0001-0329 IGBT module – Fuji Electric 6MBP80RTA060. 80 A 600 V six-pack IGBT Intelligent Power Module with integrated pre-driver and protection. For FANUC servo and spindle amplifier output stages. Check the part number before ordering.
The FANUC A50L-0001-0329 - Fuji Electric 6MBP80RTA060 - is a 80 A 600 V six-pack IGBT Intelligent Power Module (IPM) used as the output stage of FANUC servo and spindle amplifiers. The module is labelled with both the FANUC order code A50L-0001-0329 and the Fuji Electric manufacturer part number 6MBP80RTA060.

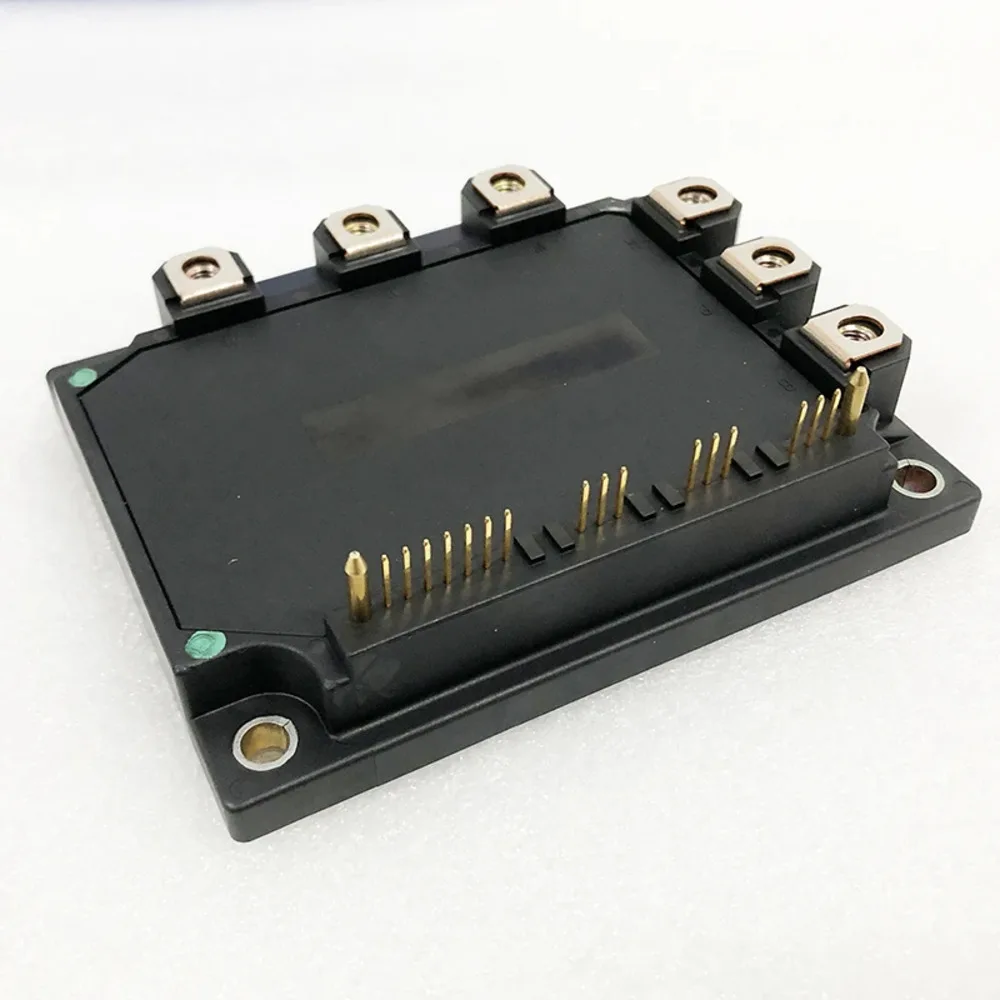

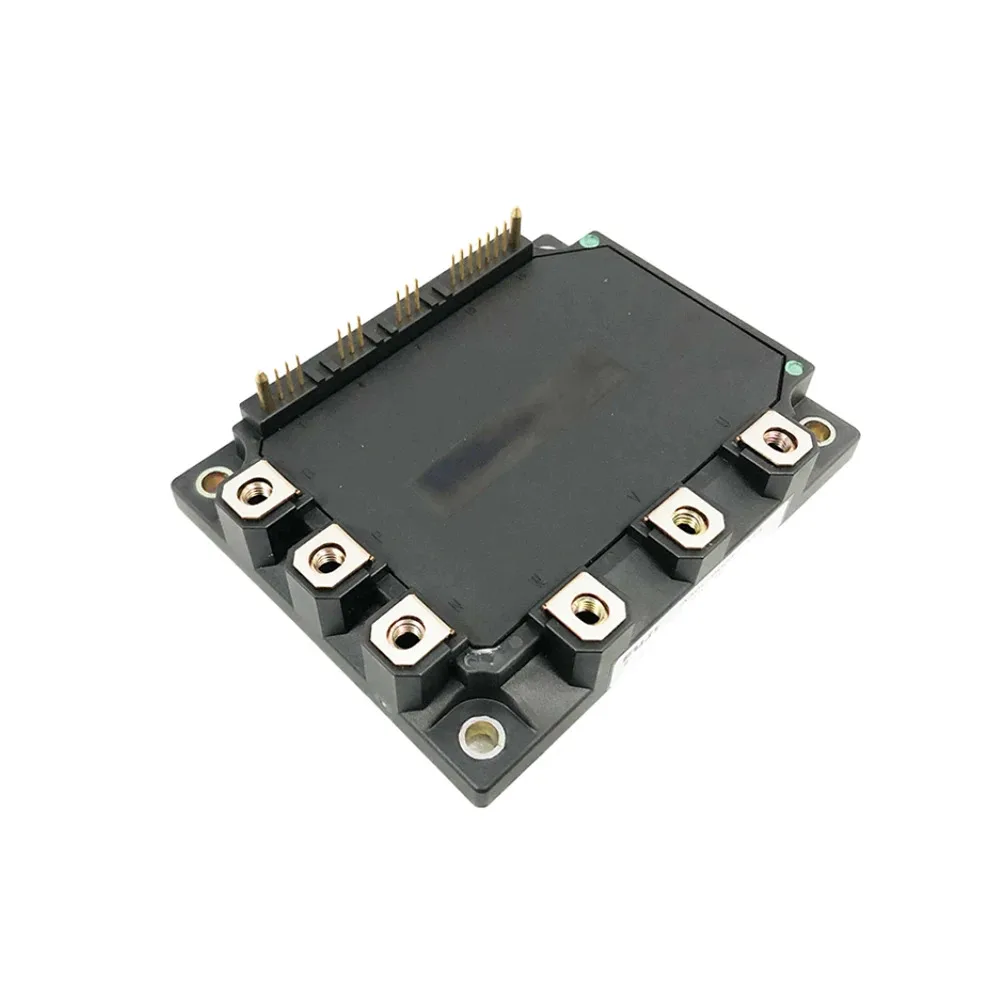

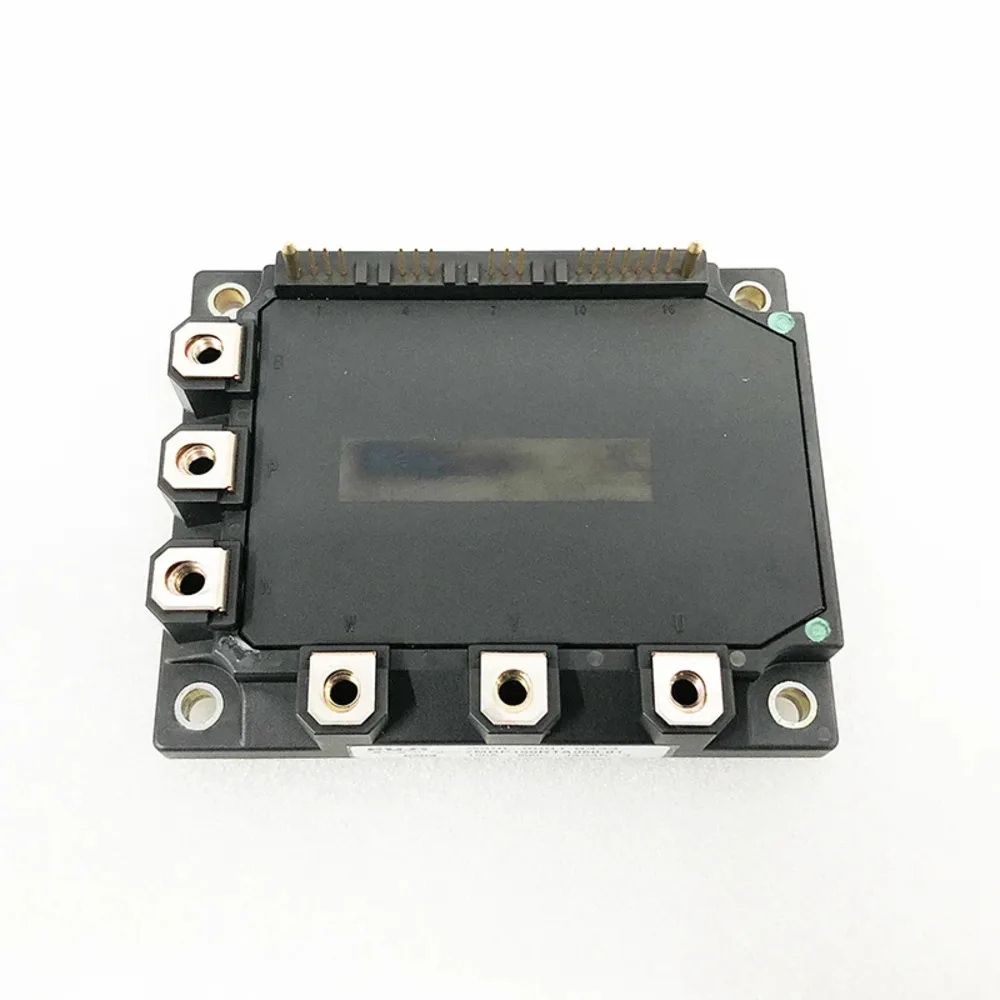

About the photographs. The supplier has obscured the printed label on the top face of the module in the listing photography. The part number and the electrical rating are printed on the sticker on the side of the module - the second image on this listing shows that sticker clearly. The module you receive is the part number ordered on this page; the photographs are of a module of the same series and case.
Condition. Supplied new and original, with the manufacturer's part number printed on the sticker on the side of the module - see the second image on this listing.
Before you order - check the part number. These modules are not interchangeable part for part across the range. Read the part number printed on the module you are replacing (the FANUC code and the Fuji code are both on the side sticker) and confirm it is A50L-0001-0329 / 6MBP80RTA060. Also confirm the drive's DC bus voltage, its rated current and the control interface: this module contains its own integrated pre-driver and protection circuit, so it needs a 15 V control supply and its fault/alarm output must be wired back to the amplifier. It is not a drop-in replacement for a plain IGBT or for a module with a different drive interface.
Find the root cause before you fit it. A failed output module is usually a symptom rather than the cause. Check the motor windings for a short to earth, look for an overload or a stalled axis, and confirm the amplifier's heatsink and fan are working. Fitting a new module without correcting the original fault will usually destroy the replacement as well.
Specification
| Manufacturer | Fuji Electric |
|---|---|
| FANUC part number | A50L-0001-0329 |
| Manufacturer part number | 6MBP80RTA060 |
| Device type | IGBT Intelligent Power Module (IPM) - 6 in one package |
| Circuit | Three-phase inverter bridge with brake chopper and freewheel diodes |
| Collector-emitter voltage (VCES) | 600 V |
| Collector current (IC) | 80 A |
| Control supply (VCC) | 15 V |
| Isolation voltage | 2500 V AC for 1 minute |
| Maximum junction temperature | 150 °C |
| Built-in protection | Over-current, short-circuit, over-temperature (direct junction detection) and under-voltage |
| Terminals | Screw power terminals (P/N/B and U/V/W) with soldered control pins - flange mounting |
| Application | FANUC servo and spindle amplifier output stages |
Delivery. Supplied direct from our specialist supplier and dispatched by standard courier. Allow 10 working days for delivery to UK addresses.
Need another rating? We also supply the 50 A, 80 A, 100 A and 150 A 600 V versions of this module - send us the part number from your old module and we will price it.
