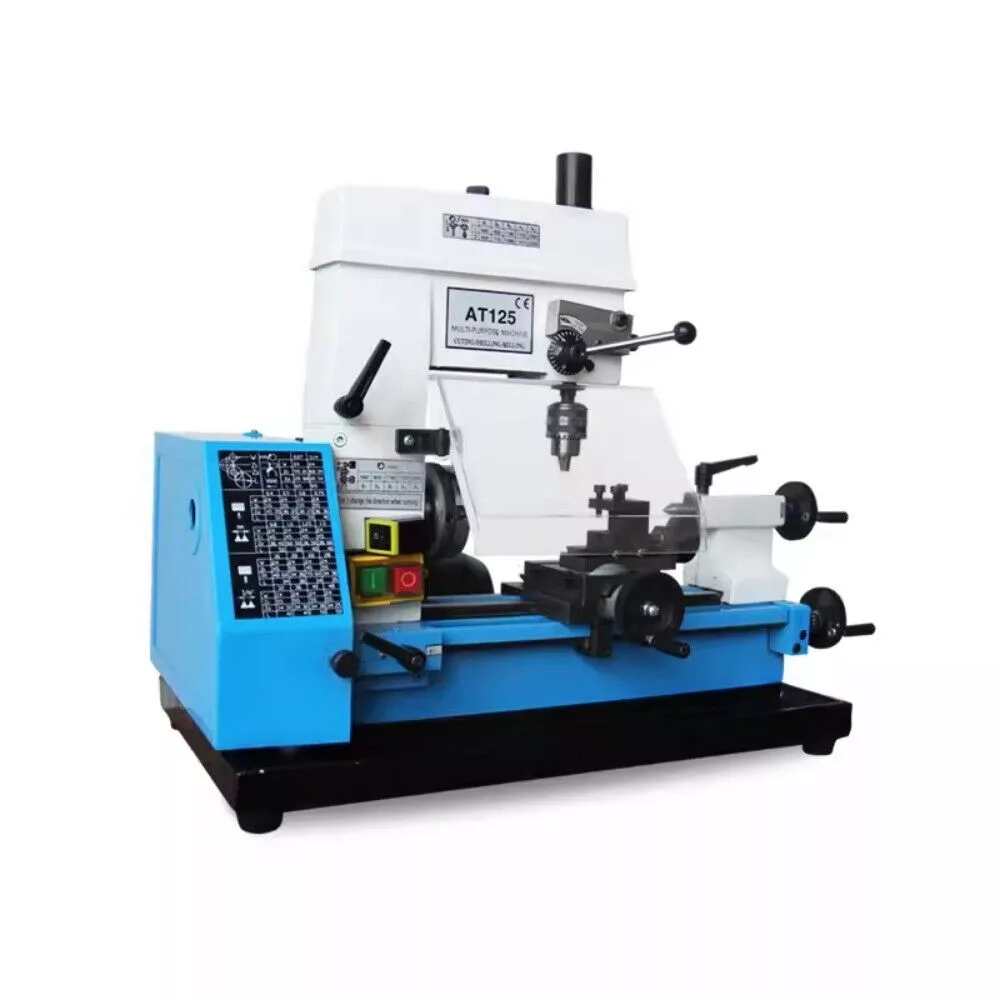

Micro-Lathe with Bench Drilling Head Attachment – 125mm Diameter Workpiece

These little Lathes are awesome, with a turning capacity of up to 125mm Diameter x 180mm Length it is the perfect little accessory for the workshop. With a footprint of just 520mm x 250mm you can squeeze these little gems into just about any space.

Turning

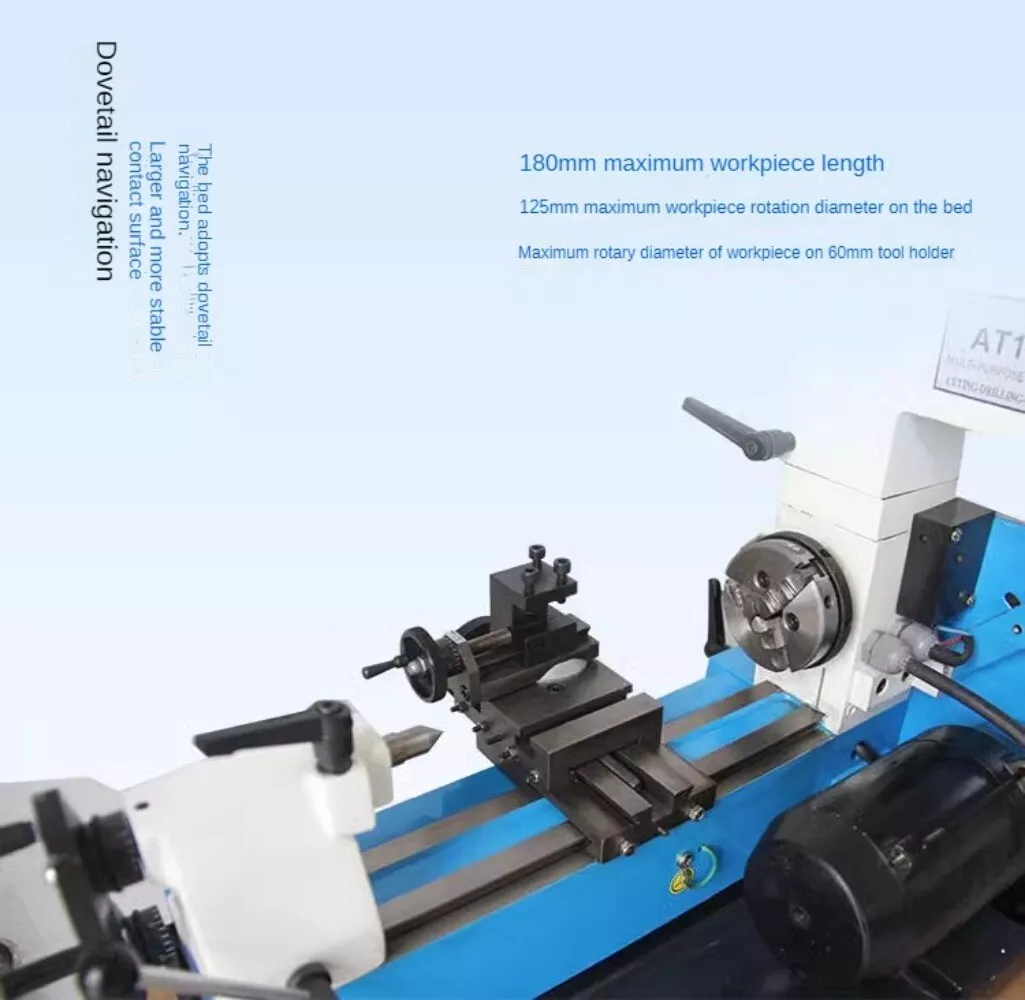

• Maximum workpiece rotating diameter on the bed: 125mm
• Maximum workpiece length: 180mm
• The maximum workpiece rotating diameter on the tool holder: 60mm
• Spindle through hole diameter: 9mm
• Spindle taper hole: MT.1

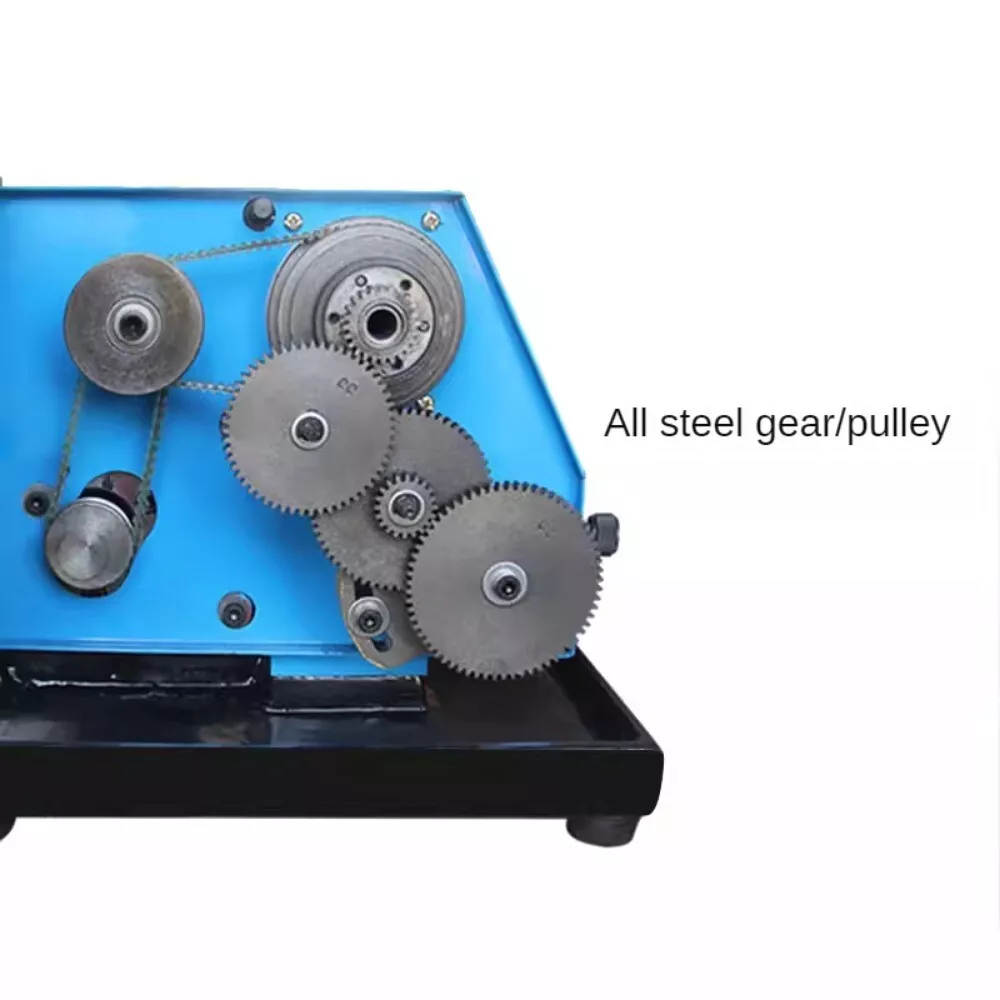

• Number of metric threads processed: 8
• Machining metric thread pitch range: 0.4-1.5mm
• Number of inch threads processed: 8
• Machining inch thread pitch range: 0.0028-0.00551/n”
• Vertical feed series: 2
• The longitudinal feed of the spindle per revolution of the tool holder: 0.07-0.14mm
• Tail seat sleeve stroke: 18mm
• Tailstock sleeve taper hole: MT.1
• Spindle speed range and series: 560 2500r/min 5 levels

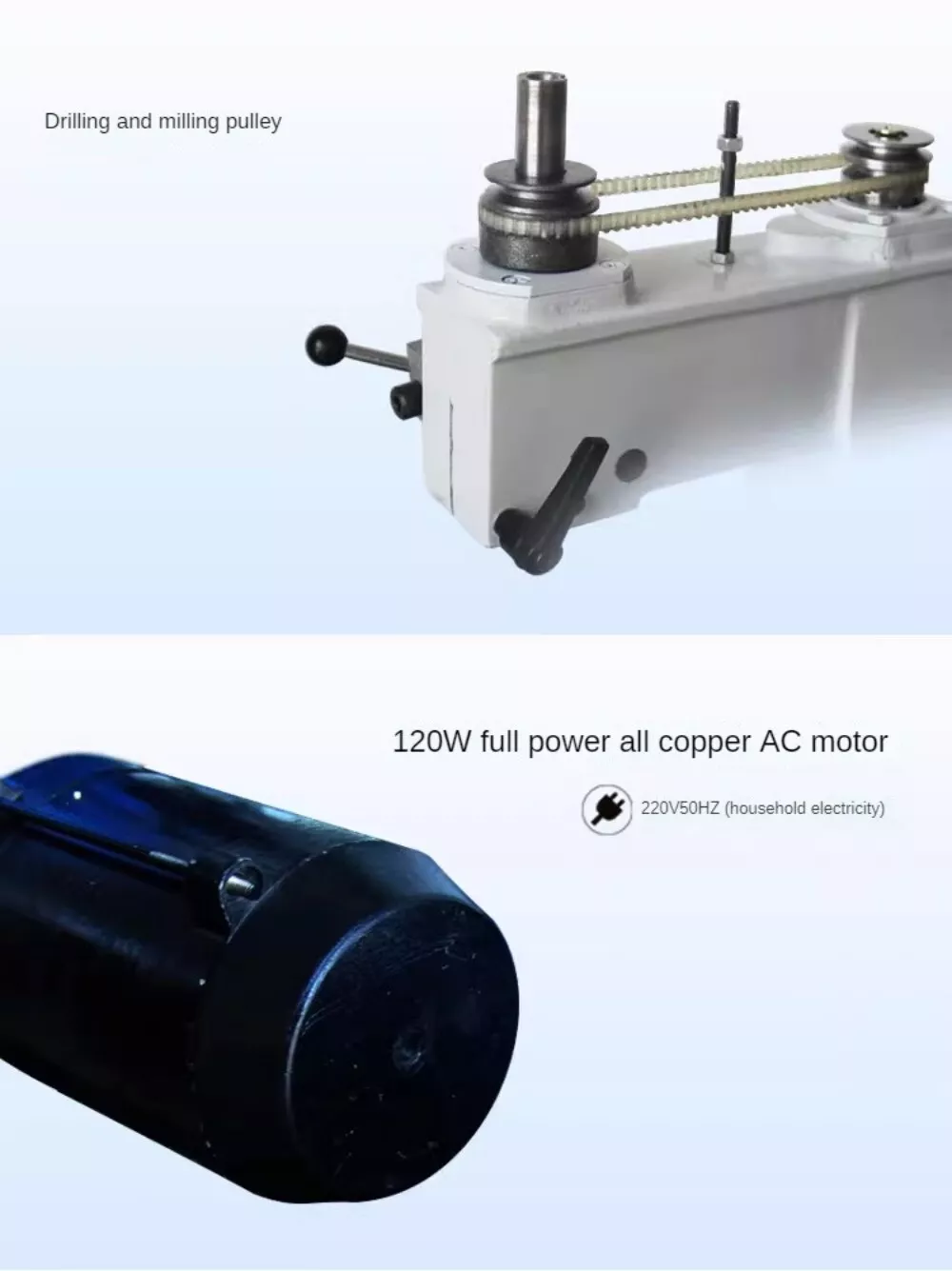

Drilling and milling

• Maximum drilling diameter: 6mm
• Distance from spindle end face to work surface: 120-180mm
• Distance from spindle center line to column surface: 125mm
• Drilling and milling head box rotation Angle around the column: 360
• Spindle speed range and series: 500-2500r /min 10 levels
• Vertical lifting stroke of drilling and milling head box: 60mm
• Working face width: 60mm
• Length of work surface: 85mm
• Table T-slot width: 8mm
• Spindle sleeve movement: 40mm
• Net weight: 22kg

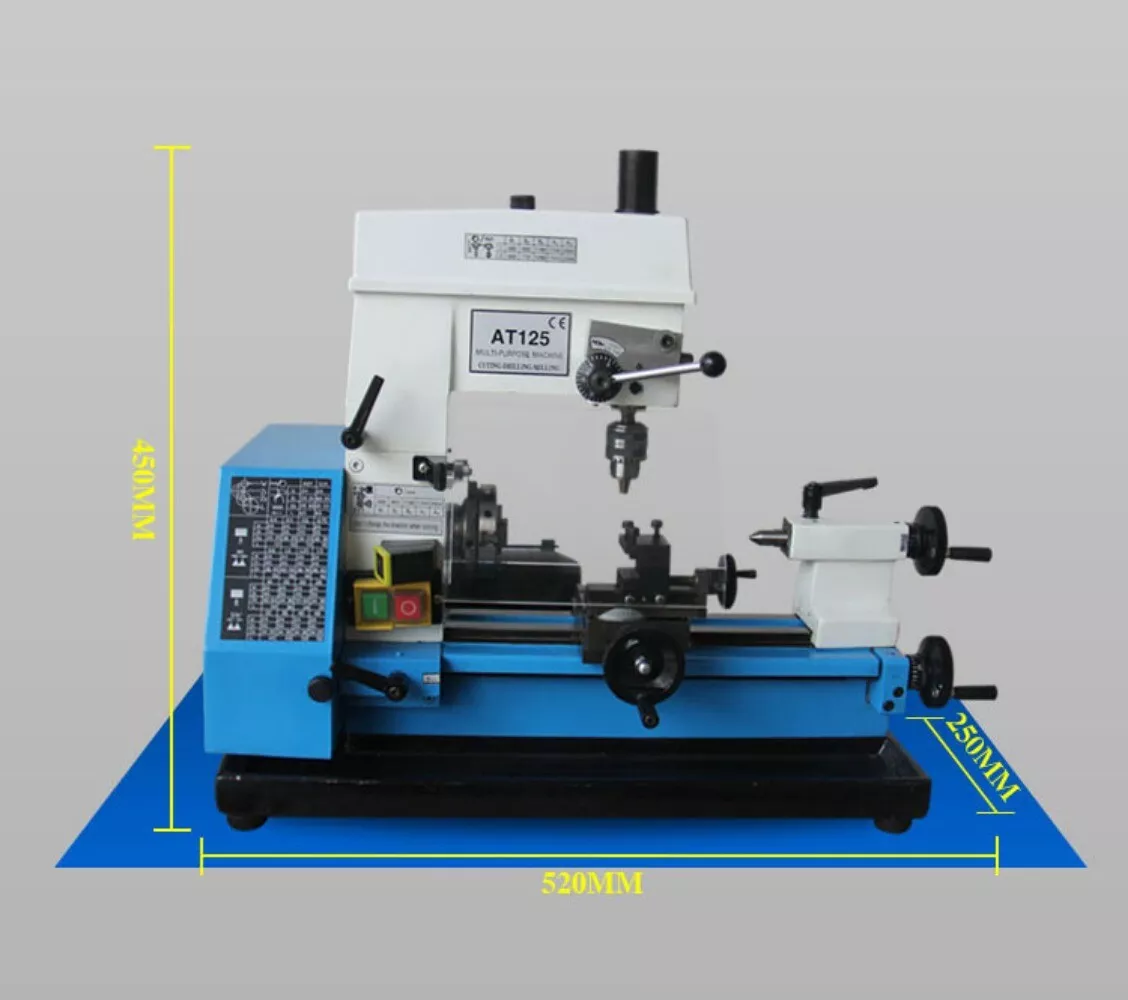

• Dimensions: 520x300x410mm
